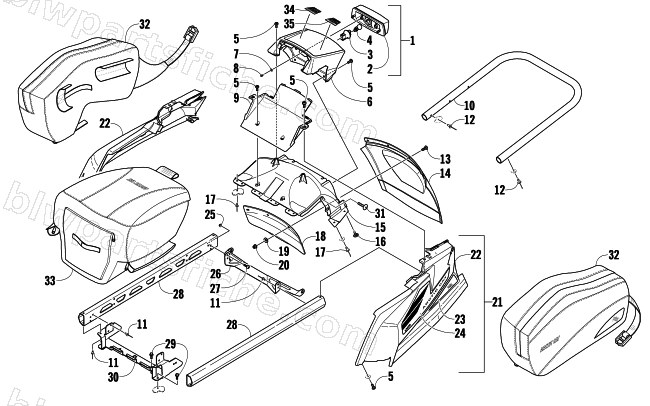

2010 Arctic Cat TZ1 TURBO LXR — REAR BUMPER, RACK RAIL, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2010 TZ1 TURBO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4706-886 | BAG,TOOL KIT-ASSY | 1 | $32.95 | |
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 4 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 5 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 6 | 4706-640 | HOOD,TAILLIGHT-BLK PTD CLEAR | 1 | $62.95 | |
| 7 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 8 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 9 | 4706-641 | PANEL,TAILLIGHT ACCESS-BLK PTD CLEAR | 1 | $105.95 | |
| 10 | 1707-320 | BUMPER, REAR-PTD GO NAVY BLUE MET-TOUR | 1 | $128.95 | |
| 11 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 12 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 13 | 1623-782 | SCREW,MACH-TSTRH M6X1.0X20 RIE BLK | 1 | $1.92 | |
| 14 | 5606-254 | SNOWFLAP, BLK-W/8611-268 | 1 | $84.95 | |
| 15 | 5606-056 | CLOSE-OFF, TUNNEL-MOLD BLK | 1 | $46.95 | |
| 16 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 17 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 18 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 19 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 2718-824 | FENDER, REAR BLK PTD CLEAR-RH W/DECAL | 1 | $93.95 | |
| 21 | 2718-825 | FENDER, REAR BLK PTD CLEAR-LH W/DECAL | 1 | $93.95 | |
| 22 | 2718-822 | FENDER, REAR BLK PTD CLEAR-RH W/O DECAL | 1 | $69.95 | |
| 22 | 2718-823 | FENDER, REAR BLK PTD CLEAR-LH W/O DECAL | 1 | $66.95 | |
| 23 | 8611-304 | DECAL,REFLECTOR-RED-RH (TOUR) | 1 | $20.63 | |
| 23 | 8611-305 | DECAL,REFLECTOR-RED-LH (TOUR) | 1 | $20.63 | |
| 24 | 8611-782 | DECAL,FENDER-RH "LXR" | 1 | $23.39 | |
| 24 | 8611-783 | DECAL,FENDER-LH "LXR" | 1 | $23.39 | |
| 25 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 26 | 3706-989 | MOUNT, RAIL-REAR-PTD BLK | 1 | $102.95 | |
| 27 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 28 | 4706-482 | RAIL, RACK-MACH | 1 | $92.95 | |
| 29 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 30 | 5706-045 | BRKT,RAIL MOUNT-FRT-PTD BLK | 1 | $87.95 | |
| 31 | 1623-700 | SCREW, SELF TAPPING-M8X42 TRILOBE Z&Y | 1 | $3.16 | |
| 32 | 5606-173 | SADDLEBAG, SIDE-LH | 1 | $241.95 | |
| 33 | 5606-171 | SADDLEBAG, REAR | 1 | $288.95 | |
| 34 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 35 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 |
