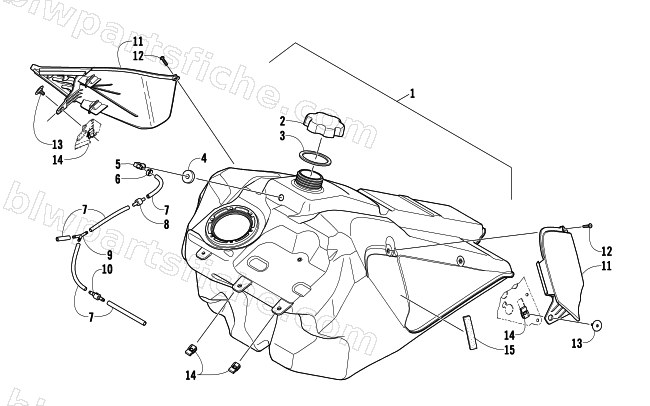

2010 Arctic Cat F8 EFI — GAS TANK ASSEMBLY
2010 F8 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-148 | TANK,FUEL-2S/91 OCT-EVOH-W/CAP | 1 | $421.95 | |
| 2 | 2670-153 | CAP,FUEL-91 MINIMUM OCTANE REQUIRED | 1 | $13.73 | |
| 4 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 5 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 6 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 7 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 7 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 9 | 2670-105 | FITTING, Y-6X6X6MM | 1 | $16.49 | |
| 10 | 1670-913 | VALVE,PRESSURE RELIEF-VENTLINE | 1 | $26.95 | |
| 11 | 5606-144 | PANEL, KNEE-RH | 1 | $22.01 | |
| 11 | 5606-145 | PANEL, KNEE-LH | 1 | $22.01 | |
| 12 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 14 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 15 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 |
