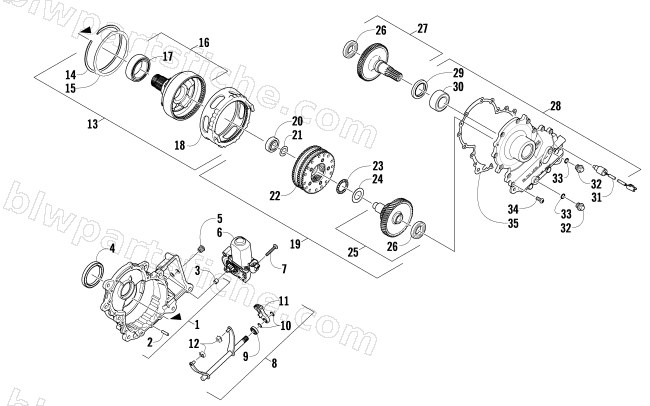

2010 Arctic Cat F8 EFI LXR — GEARCASE ASSEMBLY
2010 F8 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1702-137 | GEARCASE,DRIVE-FWD "F" 64/56 5P ASSY | 1 | $1,491.95 | |
| 0 | 5639-219 | FLUID,GEARCASE-ACT 1-15OZ | 1 | $18.95 | |
| 0 | 1702-163 | GEARCASE-ACT REV-54/66 5P-ASSY | 1 | $3,028.95 | |
| 0 | 4639-628 | ACT REVERSE GEARCASE FLUID 1-12 OZ | 1 | $17.95 | |
| 1 | 0702-994 | GEARCASE,FWD ONLY-ASSY | 1 | $280.95 | |
| 1 | 1702-052 | GEARCASE-ASSY | 1 | $288.95 | |
| 2 | 1602-915 | PIN,DOWEL-M5 DIA X 14 | 1 | $2.47 | |
| 3 | 2602-159 | SEAL,OIL-PRE LUBE-50 X 65 X 8MM | 1 | $24.77 | |
| 3 | 1602-916 | BEARING,MB 0808 DU | 1 | $1.50 | |
| 4 | 2602-151 | SNAP RING (XUMI-151) | 1 | $13.73 | |
| 5 | 1702-012 | GEAR,RING-76T W/BRG | 1 | $275.95 | |
| 5 | 1602-917 | PLUG,PLASTIC-16MM | 1 | $2.06 | |
| 6 | 1602-980 | BEARING,50MMX72MMX20MM-PEER | 1 | $46.95 | |
| 6 | 0630-284 | R/B 0630-346 | 1 | $283.95 | |
| 7 | 1702-013 | GEAR,PLANETARY-5P-W/ADAPTER ASSY | 1 | $331.95 | |
| 7 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 8 | 1602-349 | GEAR,PLANETARY-5 PINION | 1 | $258.95 | |
| 8 | 1702-006 | FORK,SHIFT-66T(CAST)-ASSY | 1 | $188.95 | |
| 9 | 2602-257 | RING,RETAINING-PLANETARY GEAR(W/O TAB) | 1 | $5.09 | |
| 9 | 2602-013 | SEAL,OIL-SHIFT ROD 12X22X7 | 1 | $3.99 | |
| 10 | 0702-695 | SHAFT,INPUT-64T W/BEARING-ASSY | 1 | $188.95 | |
| 10 | 2602-057 | RING, RETAINING, EXT-12MM | 1 | $0.95 | |
| 11 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 | |
| 11 | 2602-549 | ARM,SHIFT FORK-11T-REVERSE | 1 | $19.25 | |
| 12 | 1702-103 | GEAR,TRANSFER-56T/34T-FWD-SPLINED-ASSY | 1 | $275.95 | |
| 12 | 2602-127 | BLOCK,SLIDER-SHIFT FORK | 1 | $4.26 | |
| 13 | 2602-259 | SPACER,BEARING (17MM) | 1 | $2.61 | |
| 13 | 0702-910 | SLIDER,OUTER - ASSY | 1 | $838.95 | |
| 14 | 2602-108 | BEARING,TRANSFER GEAR-17mm- PEER | 1 | $8.21 | |
| 14 | 2602-040 | RING,RETAINING-136MM X 1.09MM | 1 | $17.87 | |
| 15 | 2602-184 | GASKET,GEARCASE-(FWD ONLY) | 1 | $16.49 | |
| 15 | 2602-064 | WASHER,THRUST-LOCK-116 X 131.5 X .9 | 1 | $13.73 | |
| 16 | 0702-996 | COVER,GEARCASE-FWD ONLY-ASSY | 1 | $231.95 | |
| 17 | 2602-160 | SEAL,OIL-PRE LUBE-2.099 X 1.311 X .315 | 1 | $23.39 | |
| 18 | 1602-982 | BEARING,SHAFT-INPUT-30MM-PEER | 1 | $34.95 | |
| 18 | 2602-063 | SLIDER, OUTER | 1 | $279.95 | |
| 19 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 19 | 1702-159 | GEAR,OUTPUT-66T/34T 5P-SPLINED | 1 | $1,283.95 | |
| 20 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 21 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 21 | 2602-058 | WASHER,SPACER-.681X1.000X.040 | 1 | $2.75 | |
| 22 | 1702-130 | GEAR,OUTPUT-5P-ASSY | 1 | $713.95 | |
| 23 | 2602-317 | BEARING, THRUST 25X42MM (INA) | 1 | $12.35 | |
| 24 | 2602-316 | WASHER, THRUST 25X42X1MM (INA) | 1 | $3.44 | |
| 25 | 1702-160 | GEAR,TRANSFER-SPLINED ASSY 66T/34T | 1 | $394.95 | |
| 27 | 0702-686 | SHAFT,INPUT-54T W/BEARING-ASSY | 1 | $174.95 | |
| 28 | 0702-941 | COVER,GEARCASE-ASSY | 1 | $300.95 | |
| 31 | 0630-224 | SWITCH,GEAR INDICATOR | 1 | $53.95 | |
| 35 | 2602-183 | GASKET,GEARCASE-(F REV) | 1 | $23.39 |
