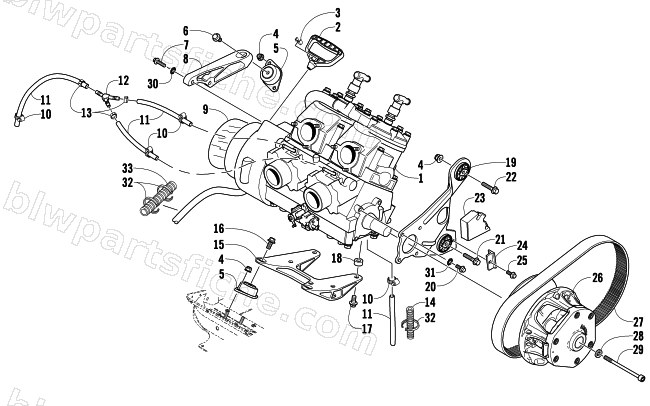

2010 Arctic Cat F8 EFI LXR — ENGINE AND RELATED PARTS
2010 F8 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-609 | ENGINE,L/C-800 HO (W/O EFI/VALVE CABLES) | 1 | $4,457.95 | |
| 1 | 0762-582 | LONG BLOCK,ENGINE-500AA | 1 | $2,656.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 0608-496 | MOUNT,ENGINE | 1 | $49.95 | |
| 6 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 7 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 7 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 8 | 0708-474 | MOUNT,ENG-MAG,800/1000-MACH | 1 | $71.95 | |
| 8 | 0708-478 | MOUNT,ENG-MAG,500AA/600-MACH | 1 | $93.95 | |
| 9 | 4606-425 | FOIL,PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $13.73 | |
| 9 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 10 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 11 | 0610-779 | HOSE,COOLANT-MAG/THROTTLE BODY(21.00") | 1 | $45.95 | |
| 11 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 12 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 12 | 1670-596 | FITTING,Y-5/16 | 1 | $3.44 | |
| 13 | 0745-282 | BRKT,MTG-ES FLEX PINION-W/BUSHING(800) | 1 | $271.95 | |
| 13 | 0610-581 | CLAMP, HOSE-14.5MM TO 17.0MM | 1 | $2.61 | |
| 14 | 0610-731 | HOSE,THROTTLE BODY PTO/WATER PUMP(15.50) | 1 | $17.95 | |
| 15 | 0708-484 | BRKT,MTG,ENG-PTO 500/600/800-ASSY | 1 | $275.95 | |
| 15 | 0608-577 | PLATE,ENG-FRONT-MACH | 1 | $185.95 | |
| 16 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 16 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 8409-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $3.16 | |
| 18 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 18 | 0608-576 | SPACER,ENGINE MTG-11MM | 1 | $29.95 | |
| 19 | 8408-847 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&YW/204 | 1 | $1.92 | |
| 20 | 0608-511 | SNUBBER, RUBBER | 1 | $24.77 | |
| 21 | 0608-512 | BUMPER,TORQUE-MACHINED | 1 | $13.73 | |
| 22 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 23 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 24 | 0627-046 | BELT,DRIVE-S-3C-1.448"WX45.998"OC-DC | 1 | $133.95 | |
| 25 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 26 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 | |
| 27 | 8053-272 | WASHER,LOCK-3/8 EXT TOOTH TYP A Z&Y | 1 | $0.26 | |
| 27 | 0627-067 | BELT,DRIVE-S-2A-1.406"WX45.394"OC-DC | 1 | $133.95 | |
| 28 | 1619-131 | LOOM,PROTECTIVE-3/4 ID-12"-CTL | 1 | $3.44 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 33 | 0619-994 | LOOM,PROTECTIVE-3/4 ID-6"-CTL | 1 | $1.64 |
