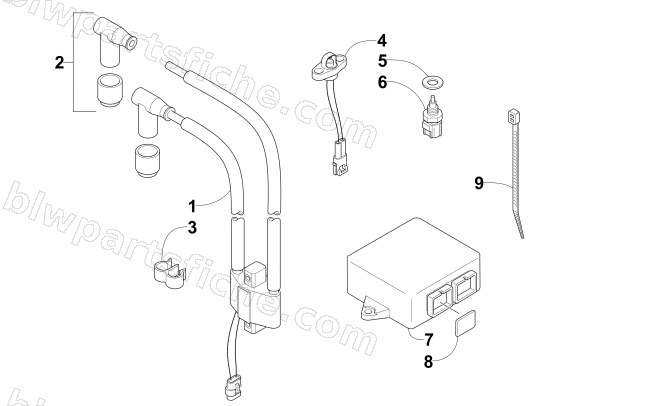

ELECTRICAL
2010 F8 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-548 | COIL ASSY,IGNITION | 1 | $200.95 | |
| 1 | 3007-451 | COIL ASSY,IGNITION | 1 | $200.95 | |
| 2 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 3 | 3005-387 | CLIP | 1 | $4.40 | |
| 4 | 3006-728 | SENSOR ASSY,AIR TEMP | 1 | $137.95 | |
| 5 | 3006-725 | SENSOR ASSY,COOLING WATER( R/B 0902-010) | 1 | $149.95 | |
| 6 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 6 | 3007-060 | SENSOR,WATER TEMP | 1 | $216.95 | |
| 7 | 3007-761 | ECU,'10 800 (LOW) CIRCLE | 1 | $2,911.95 | |
| 7 | 3007-762 | ECU,'10 800 (LOW) SQUARE | 1 | $2,676.95 | |
| 7 | 3007-763 | ECU,'10 800 (LOW) TRIANGLE | 1 | $2,522.95 | |
| 7 | 3007-749 | ECU,'10 500-LOW CIRCLE (A) | 1 | $2,911.95 | |
| 7 | 3007-750 | ECU,'10 500-LOW SQUARE (B) | 1 | $2,598.95 | |
| 7 | 3007-751 | ECU,'10 500-LOW TRIANGLE (C) | 1 | $2,911.95 | |
| 8 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 8 | 3005-908 | COVER, PORT | 1 | $27.95 | |
| 9 | 3006-886 | SENSOR ASS'Y,KNOCK | 1 | $357.95 | |
| 10 | 3007-549 | PLATE,KNOCK SENSOR LOCK | 1 | $14.95 |
