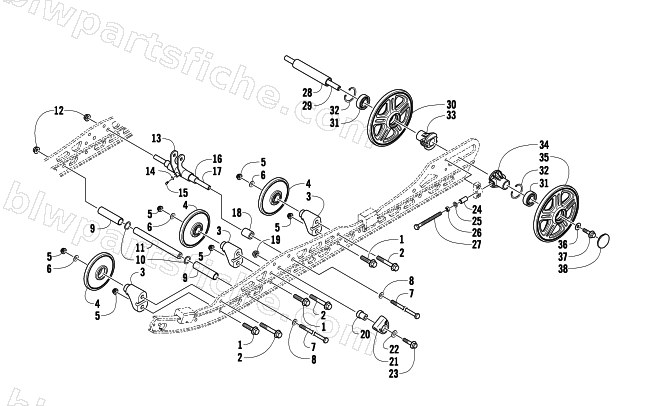

IDLER WHEEL ASSEMBLY
2010 CFR8 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 2 | 8020-142 | SCREW,CAP-HFH 5/16-18 X 3.25 G5 Z&Y | 1 | $3.95 | |
| 3 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 4 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 5 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 6 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 7 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 8 | 0623-439 | WASHER, FLAT .375X.625X.064 | 1 | $2.33 | |
| 9 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 10 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 11 | 3604-080 | AXLE, ALUM-.875 DIA X 8.750 | 1 | $47.95 | |
| 12 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 13 | 0704-994 | PIVOT,REAR SHOCK-FABR | 1 | $74.95 | |
| 14 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 15 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 16 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 17 | 1604-209 | AXLE,STEEL-8.75 (THRU BOLT) | 1 | $73.95 | |
| 18 | 2604-109 | SPACER,ALUM-2.805" | 1 | $12.35 | |
| 19 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 20 | 2604-378 | BLOCK,SLIDE-SPRING-1.53" | 1 | $16.49 | |
| 21 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 22 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 23 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 24 | 2604-890 | SPACER,TRACK ADJUSTMENT | 1 | $6.75 | |
| 25 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 26 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 27 | 1623-354 | SCREW,CAP-HH 3/8-16X5.5 UNC GR 5 | 1 | $2.75 | |
| 28 | 1604-810 | SPACER,REAR WHEEL-CTR | 1 | $32.95 | |
| 29 | 2604-874 | AXLE,REAR WHEEL-STEEL 12.622" | 1 | $83.95 | |
| 30 | 3604-060 | WHEEL,IDL-7.12 W.787"ID BLK(NO SPOKE) | 1 | $53.95 | |
| 31 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 32 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 33 | 2604-881 | BUSHING,ADJUSTER-4 WHL | 1 | $5.51 | |
| 34 | 1704-490 | BUSHING,ADJUSTER-3 WHL-SHORT-MACH | 1 | $12.35 | |
| 35 | 3604-063 | WHEEL,IDL-7.12 W.787"ID BLK | 1 | $53.95 | |
| 36 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 37 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 38 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 |
