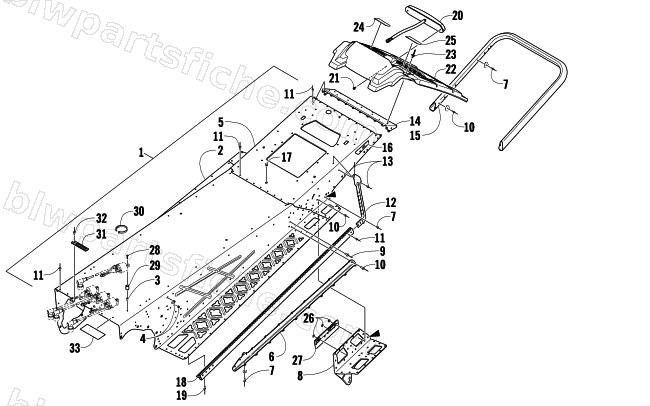

2010 Arctic Cat CF8 LE — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2010 CF8 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-427 | CHASSIS/TUNNEL-S/P ASSY 141"PTD BLK | 1 | $2,590.95 | |
| 1 | 2718-933 | TUNNEL-S/P ASSY 141"-PTD BLK | 1 | $793.95 | |
| 2 | 2718-932 | TUNNEL,FRONT-W/INSERTS-PTD BLK | 1 | $486.95 | |
| 3 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 4 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 5 | 4706-488 | BODY,REAR-141"-PTD BLK | 1 | $179.95 | |
| 6 | 4706-170 | BRKT,TUNNEL SUPPORT-RH-PTD BLK | 1 | $53.95 | |
| 6 | 4706-171 | BRKT,TUNNEL SUPPORT-LH-PTD BLK | 1 | $53.95 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 4706-190 | BRKT,MTG-SUSP-RH-PTD BLK | 1 | $82.95 | |
| 8 | 4706-191 | BRKT,MTG-SUSP-LH-PTD BLK | 1 | $84.95 | |
| 9 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 4706-796 | GUSSET,TUNNEL ROLL-RH-PTD BLK | 1 | $22.01 | |
| 12 | 4706-797 | GUSSET,TUNNEL ROLL-LH-PTD BLK | 1 | $22.01 | |
| 13 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 14 | 4706-689 | END CAP,TUNNEL-PTD BLK | 1 | $32.95 | |
| 15 | 4706-490 | BUMPER,REAR-141"-PTD BLK | 1 | $101.95 | |
| 16 | 8611-520 | DECAL,REFLECTOR-REAR-RH (RED) | 1 | $23.39 | |
| 16 | 8611-521 | DECAL,REFLECTOR-REAR-LH (RED) | 1 | $23.39 | |
| 17 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 18 | 4706-872 | ROLL,TUNNEL-RH-PTD BLK | 1 | $131.95 | |
| 18 | 4706-873 | ROLL,TUNNEL-LH-PTD BLK | 1 | $131.95 | |
| 19 | 8060-502 | RIVET,BLIND-DH SS52-BLK | 1 | $0.95 | |
| 20 | 0609-863 | TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED | 1 | $112.95 | |
| 21 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 22 | 5606-525 | SNOWFLAP,LONG-INJ MOLD | 1 | $124.95 | |
| 23 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 24 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 25 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 26 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 27 | 4606-790 | GUIDE,TRACK-TUNNEL-R/H | 1 | $38.95 | |
| 27 | 4606-791 | GUIDE,TRACK-TUNNEL-L/H | 1 | $38.95 | |
| 28 | 1623-671 | SCREW,MACH-TSTRH 10-24X1.75 G2 W/204 | 1 | $1.23 | |
| 29 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 32 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 33 | 3606-814 | FOIL,PROTECTIVE-COVER-SERVO MOTOR | 1 | $1.78 |
