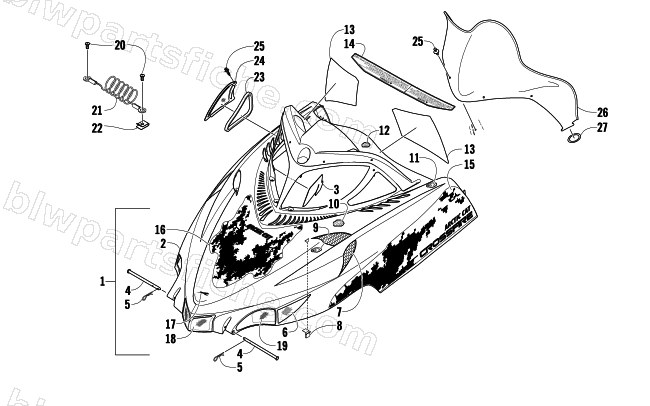

2010 Arctic Cat CF8 LE — HOOD AND WINDSHIELD ASSEMBLY
2010 CF8 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-854 | HOOD W/DECALS (10 CF LE)-MATTE BLK | 1 | $1,170.95 | |
| 2 | 2718-844 | HOOD W/O DECALS-MATTE BLACK (M-SERIES) | 1 | $1,045.95 | |
| 3 | 6606-222 | SHIELD, HOOD TAB GUIDE | 1 | $97.95 | |
| 4 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 5 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 6 | 8611-936 | DECAL,REFLECTOR-AMBER-RH | 1 | $29.95 | |
| 6 | 8611-937 | DECAL,REFLECTOR-AMBER-LH | 1 | $29.95 | |
| 7 | 2706-797 | SCREEN,VENT-HOOD-REAR L/H-PTD BLK | 1 | $33.95 | |
| 8 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 9 | 0617-580 | FOAM,HOOD-FORWARD-RH | 1 | $38.95 | |
| 9 | 0617-581 | FOAM,HOOD-FORWARD-LH | 1 | $38.95 | |
| 10 | 0617-602 | FOAM,HOOD-MIDDLE-LH | 1 | $33.95 | |
| 11 | 0617-582 | FOAM,HOOD-REAR-OUTER-RH | 1 | $132.95 | |
| 11 | 0617-583 | FOAM,HOOD-REAR-OUTER-LH | 1 | $56.95 | |
| 12 | 0617-584 | FOAM,HOOD-REAR-CENTER | 1 | $42.95 | |
| 13 | 8611-896 | DECAL,WARNING-HOOD-ENGLISH | 1 | $17.87 | |
| 13 | 8611-897 | DECAL,WARNING-HOOD-FRENCH | 1 | $17.87 | |
| 14 | 6611-143 | DECAL,CAUTION-HOOD | 1 | $15.11 | |
| 15 | 8611-912 | DECAL,HOOD-LWR-RH-CROSSFIRE | 1 | $92.95 | |
| 15 | 8611-913 | DECAL,HOOD-LWR-LH-CROSSFIRE | 1 | $100.95 | |
| 16 | 8611-918 | DECAL,HOOD-CREST | 1 | $82.95 | |
| 17 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 18 | 6606-046 | SCREEN,HOOD-FRT-BLK | 1 | $37.95 | |
| 19 | 6606-044 | SCREEN,HOOD-FRT RH-BLK | 1 | $34.95 | |
| 19 | 6606-045 | SCREEN,HOOD-FRT LH-BLK | 1 | $34.95 | |
| 20 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 21 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 22 | 1623-052 | NUT,U | 1 | $0.95 | |
| 23 | 0617-486 | FOAM,INTAKE BEZEL-RH | 1 | $15.11 | |
| 23 | 0617-487 | FOAM,INTAKE BEZEL-LH | 1 | $15.11 | |
| 24 | 4706-180 | BEZEL,INTAKE-S/P ASSY-RH | 1 | $42.95 | |
| 24 | 4706-181 | BEZEL,INTAKE-S/P ASSY-LH | 1 | $42.95 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 6606-062 | WINDSHIELD,LOW-FLAT BLACK | 1 | $170.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
