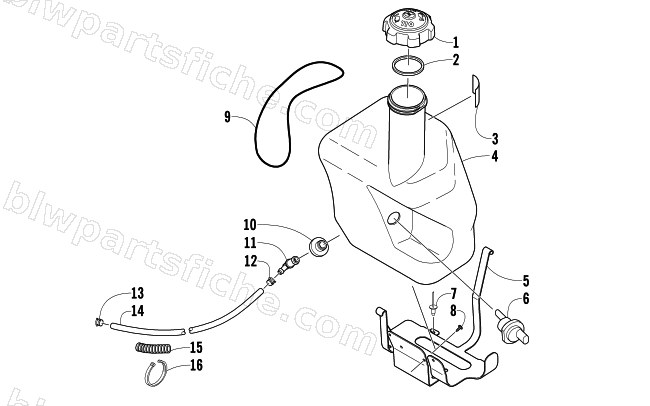

2010 Arctic Cat BEARCAT 570 LONG TRACK — OIL TANK ASSEMBLY
2010 BEARCAT 570 LONG TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 2 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 3 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 4 | 1670-922 | TANK, OIL-08 F/C | 1 | $54.95 | |
| 5 | 3706-798 | BRKT, OIL TANK-PTD BLK | 1 | $58.95 | |
| 6 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 8 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 9 | 1623-693 | O-RING-6.475 ID | 1 | $5.09 | |
| 10 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 11 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 12 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 13 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 14 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 14 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 15 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 16 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
