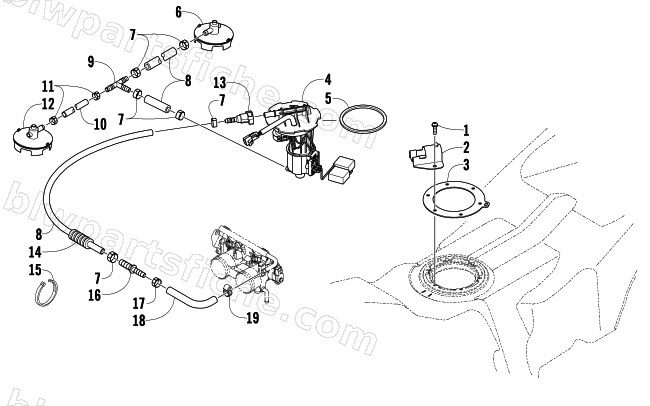

2010 Arctic Cat ARCTIC CAT 500 SNO PRO — FUEL PUMP ASSEMBLY
2010 ARCTIC CAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 6606-176 | PROTECTOR,FUEL PUMP | 1 | $77.95 | |
| 3 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 4 | 2670-131 | PUMP,FUEL-AC 500 | 1 | $990.95 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 7 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 8 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 9 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 10 | 2670-138 | PICKUP,FUEL-2MP ASSY | 1 | $211.95 | |
| 11 | 0610-704 | CLAMP,HOSE-10.1MM TO 11.8MM | 1 | $2.75 | |
| 12 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 13 | 2670-141 | FITTING,QUICK CONNECTOR | 1 | $12.35 | |
| 14 | 1619-349 | LOOM-5/8-NYLON-CTL-5' (1619-294) | 1 | $16.49 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 1623-832 | FITTING,BRASS-SPLICER-5/16"X1/4" | 1 | $13.73 | |
| 17 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 18 | 0610-818 | HOSE,GASLINE-FORMED-FILTER TO TANK | 1 | $15.11 | |
| 19 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
