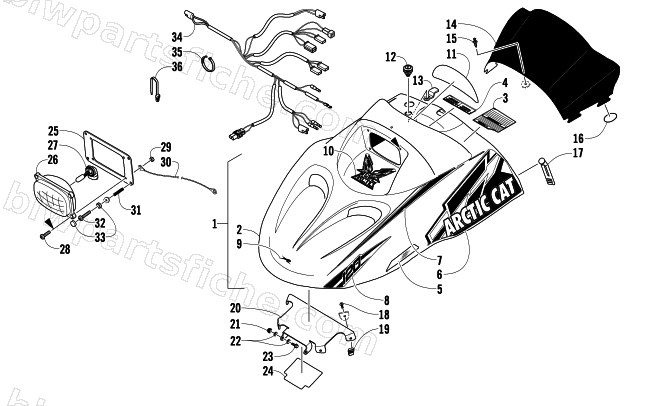

HOOD, HEADLIGHT, AND WINDSHIELD ASSEMBLY
2010 AC 120 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-741 | R/B 2718-270 | 1 | $734.95 | |
| 2 | 2718-270 | HOOD W/O DECALS-120-GREEN | 1 | $550.95 | |
| 3 | 3611-755 | DECAL, CAUTION-THROTTLE | 1 | $6.47 | |
| 4 | 3611-678 | DECAL,WARNING-HOOD | 1 | $5.95 | |
| 5 | 8611-708 | REFLECTOR,FRONT-RH-YELLOW (120) | 1 | $14.95 | |
| 5 | 8611-709 | REFLECTOR,FRONT-LH-YELLOW (120) | 1 | $14.95 | |
| 6 | 8611-712 | DECAL, HOOD-LOWER-RH-GRN | 1 | $45.95 | |
| 6 | 8611-713 | DECAL, HOOD-LOWER-LH-GRN | 1 | $43.95 | |
| 7 | 8611-714 | DECAL, HOOD-UPPER-RH-GRN | 1 | $18.95 | |
| 7 | 8611-715 | DECAL, HOOD-UPPER-LH-GRN | 1 | $18.95 | |
| 8 | 8611-710 | DECAL, HOOD-FORWARD-RH-GRN | 1 | $18.95 | |
| 8 | 8611-711 | DECAL, HOOD-FORWARD-LH-GRN | 1 | $19.25 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 8611-716 | DECAL, HOOD-CREST-120 | 1 | $33.95 | |
| 11 | 9611-042 | DECAL, HOOD-CONSOLE-GRN | 1 | $22.01 | |
| 12 | 1623-846 | LATCH,HOOD-SLOTTED-1/4 TURN | 1 | $17.87 | |
| 13 | 1623-847 | ARM,LATCH-6MM | 1 | $6.75 | |
| 14 | 4606-411 | WINDSHIELD, '07 120 | 1 | $159.95 | |
| 15 | 0623-243 | CLIP,HOOD VENT | 1 | $1.50 | |
| 16 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 17 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 18 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 19 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 20 | 2706-140 | BRKT, UPPER MTG-HOOD-PTD BLK | 1 | $26.95 | |
| 21 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 22 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 23 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 24 | 8611-603 | DECAL, JET CHART-09 120 | 1 | $8.95 | |
| 25 | 3706-719 | PLATE, ADAPTER-HEADLIGHT-PTD BLK-07 120 | 1 | $33.95 | |
| 26 | 0609-817 | HEADLIGHT ASSY-07 120 | 1 | $96.95 | |
| 27 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 28 | 8019-397 | SCREW,MACH-TSPNH 10-24 X 1/2 GR2 Z&Y | 1 | $0.95 | |
| 29 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 30 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 31 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 32 | 8019-407 | SCREW,MACH-TSPNH 10-24 X 2.00 GR2 Z&Y | 1 | $1.95 | |
| 33 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 34 | 1686-578 | HARNESS, MAIN-2010 120 | 1 | $117.95 | |
| 35 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 36 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
