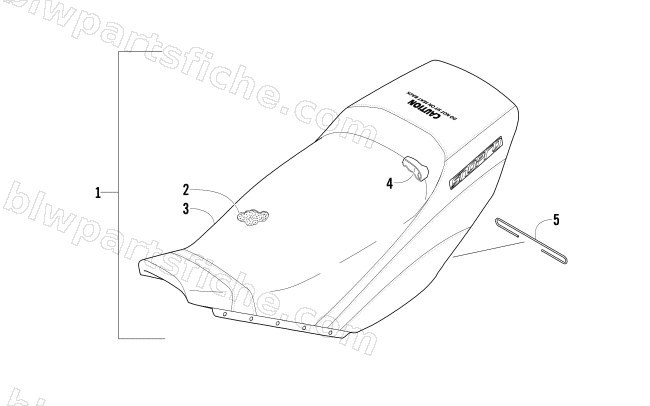

2010 Arctic Cat 600 SNO PRO — SEAT ASSEMBLY
2010 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7800-712 | SEAT,MFG ASSY | 1 | $426.95 | |
| 2 | 0717-198 | FOAM,SEAT-.50R/3.5(85-90 ILD) | 1 | $145.95 | |
| 3 | 4706-780 | COVER, SEAT | 1 | $300.95 | |
| 4 | 5606-156 | WIRE, SEAT-BENT | 1 | $4.68 | |
| 5 | 5606-380 | WIRE,SEAT - 279 MM - FORMED | 1 | $2.88 |
