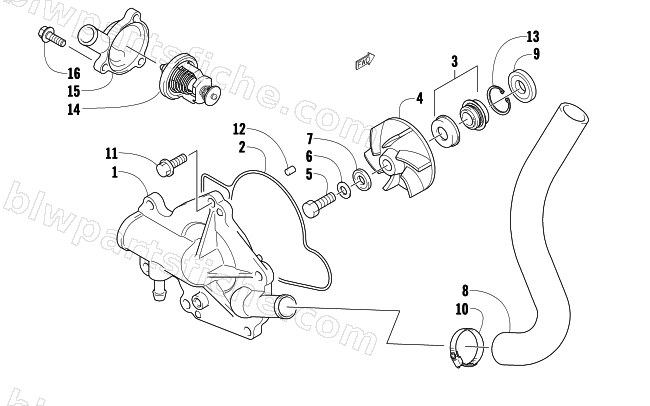

2010 Arctic Cat 600 SNO PRO CROSS COUNTRY — WATER PUMP AND THERMOSTAT
2010 600 SNO PRO CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-942 | COVER ASSY.-WATER PUMP | 1 | $295.95 | |
| 2 | 3006-356 | O-RING,WATER PUMP COVER '02 440 SNO PRO | 1 | $49.95 | |
| 3 | 3007-180 | SEAL,MECHANICAL | 1 | $52.95 | |
| 4 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 5 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 6 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 7 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 8 | 3007-743 | HOSE,WATER INLET | 1 | $45.95 | |
| 9 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 10 | 3006-324 | CLAMP '02 440 SNO PRO | 1 | $29.95 | |
| 11 | 3007-409 | BOLT | 1 | $3.16 | |
| 12 | 3005-899 | PIN | 1 | $3.44 | |
| 13 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 14 | 3007-041 | THERMOSTAT,WATER | 1 | $101.95 | |
| 15 | 3006-914 | CAP,THERMOSTAT | 1 | $84.95 | |
| 16 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 |
