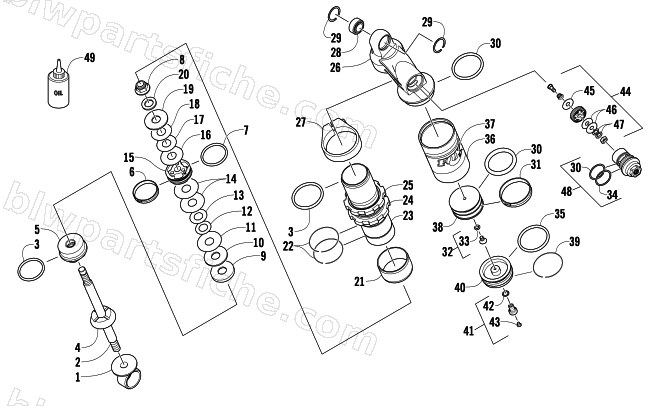

2010 Arctic Cat 600 SNO PRO CROSS COUNTRY — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2010 600 SNO PRO CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-838 | SHOCK,FRT ARM-FOX (CROSS COUNTRY) | 1 | $1,248.95 | |
| 1 | 3604-576 | EYELET,SHOCK-.700 W X 1.005 ID | 1 | $61.95 | |
| 2 | 3604-525 | SHAFT,SHOCK-.498 X 6.660" TLG | 1 | $91.95 | |
| 3 | 3604-538 | KIT,REBUILD-.498 SHAFT | 1 | $248.95 | |
| 4 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 5 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 6 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 7 | 2604-214 | O-RING-25MM ID X 1.5 MM CS | 1 | $4.95 | |
| 8 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 9 | 2603-474 | SPACER,.504ID X 1.25OD X .250THK 6061AL | 1 | $29.95 | |
| 10 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 11 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 12 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 13 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 14 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 15 | 2604-965 | PISTON,DAMPING-1.459 BORE-.041 ORIFICE | 1 | $114.95 | |
| 16 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 17 | 3604-533 | VALVE,.600 X .012(3/8ID) | 1 | $13.95 | |
| 18 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 19 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 20 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 21 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 22 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 23 | 3604-523 | BODY,SHOCK-W/GROOVES1.459 X 5.55" | 1 | $226.95 | |
| 24 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 25 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 26 | 3604-522 | BODY,CAP-PIGGYBACK -102.5 DEG-ASSY | 1 | $408.95 | |
| 27 | 3604-532 | CLAMP,BODY CAP-1.90 ID X M5 | 1 | $81.95 | |
| 28 | 3604-526 | BEARING,SPHERICAL-.875 OD X .375 W | 1 | $89.95 | |
| 29 | 3604-527 | RING,RETAINING-SPIRAL-.021"X.926" OD | 1 | $13.73 | |
| 30 | 3604-539 | KIT,REBUILD-1.834" BORE-RESERVOIR | 1 | $200.95 | |
| 31 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 32 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 34 | 2603-502 | O-RING,.070 CS X .989 ID | 1 | $6.95 | |
| 35 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 36 | 3604-528 | RESERVOIR,1.834 BORE X 3.25 TLG | 1 | $184.95 | |
| 37 | 3604-160 | DECAL,RESERVOIR-06 ZERO X 6.25 X 2.15 | 1 | $27.95 | |
| 38 | 3604-524 | PISTON,FLOATING-ASSY-1.834" BORE | 1 | $117.95 | |
| 39 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 40 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 41 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 42 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 43 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 44 | 3604-187 | DAMPING ADJUST ASSY,PISTON-CONCENTRIC AD | 1 | $265.95 | |
| 45 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 46 | 2603-501 | VALVE,SHOCK-.700 X.010(1/4ID) | 1 | $13.95 | |
| 47 | 3604-165 | WASHER,BACKUP-.400OD X .252ID X .020THK | 1 | $13.95 | |
| 48 | 2603-527 | CARTRIDGE,SINGLE ADJ-DAMP ADJ ASSY | 1 | $112.95 | |
| 49 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
