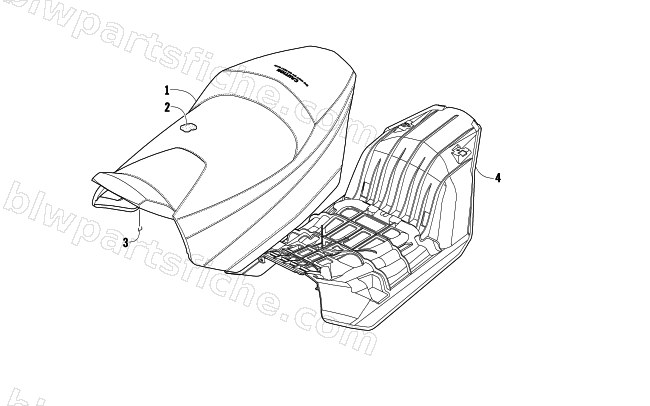

2009 Arctic Cat Z1 TURBO — SEAT ASSEMBLY
2009 Z1 TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7800-153 | SEAT,MFG ASSY-BLK NON ADJUSTABLE | 1 | $738.95 | |
| 1 | 4706-237 | COVER,SEAT-BLK NON ADJUSTABLE | 1 | $457.95 | |
| 2 | 0617-553 | FOAM, SEAT-F/C (109-115ILD).50R@5.0 | 1 | $156.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 5606-083 | SEAT BASE - PLASTIC | 1 | $112.95 |
