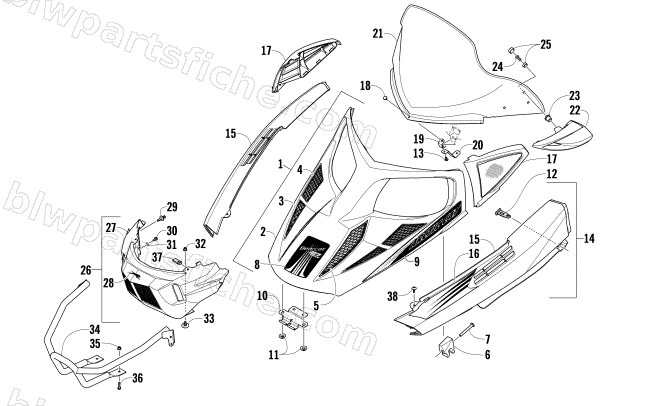

2009 Arctic Cat Z1 BEARCAT XT — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2009 Z1 BEARCAT XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-655 | LID, HOOD-W/DECALS-BCWT Z1 GRN | 1 | $251.95 | |
| 1 | 2718-639 | LID, HOOD-W/DECALS-BCWT Z1 BL | 1 | $259.95 | |
| 2 | 7999-794 | LID,HOOD-BLK-MFG ASSY | 1 | $189.95 | |
| 2 | 7800-250 | LID,HOOD-BLU-MFG ASSY-BCWT Z1 | 1 | $189.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-546 | DECAL, HOOD-CREST | 1 | $32.95 | |
| 8 | 8611-531 | DECAL, HOOD-CREST | 1 | $33.95 | |
| 9 | 8611-538 | DECAL, HOOD-"ARCTIC CAT"-RH | 1 | $16.49 | |
| 9 | 8611-539 | DECAL, HOOD-"ARCTIC CAT"-LH | 1 | $37.95 | |
| 9 | 8611-522 | DECAL, HOOD-"ARCTIC CAT"-RH | 1 | $96.95 | |
| 9 | 8611-523 | DECAL, HOOD-"ARCTIC CAT"-LH | 1 | $88.95 | |
| 10 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 13 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 14 | 2718-656 | SPAR,FRONT-RH-GRN-W/DECALS | 1 | $156.95 | |
| 14 | 2718-657 | SPAR,FRONT-LH-GRN-W/DECALS | 1 | $172.95 | |
| 14 | 2718-646 | SPAR,FRONT-RH-BLK-W/DECALS | 1 | $79.95 | |
| 14 | 2718-647 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $79.95 | |
| 15 | 5606-356 | SPAR,RH-FRONT-MOLD BLK | 1 | $66.95 | |
| 15 | 5606-357 | SPAR,LH-FRONT-MOLD BLK | 1 | $66.95 | |
| 16 | 8611-540 | DECAL, SPAR-RH | 1 | $136.95 | |
| 16 | 8611-541 | DECAL, SPAR-LH | 1 | $136.95 | |
| 16 | 8611-532 | DECAL, SPAR-RH | 1 | $93.95 | |
| 16 | 8611-533 | DECAL, SPAR-LH | 1 | $93.95 | |
| 17 | 5606-924 | BEZEL,INTAKE-RH-BLK ASSY | 1 | $58.95 | |
| 17 | 5606-925 | BEZEL,INTAKE-LH-BLK ASSY | 1 | $58.95 | |
| 17 | 5606-934 | BEZEL,INTAKE-RH-BLU ASSY | 1 | $53.95 | |
| 17 | 5606-935 | BEZEL,INTAKE-LH-BLU ASSY | 1 | $59.95 | |
| 18 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 20 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 22 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 2718-654 | FACIA,FRONT W/DECALS-GREEN | 1 | $122.95 | |
| 26 | 2718-644 | FACIA,FRONT W/DECALS-PLAT | 1 | $125.95 | |
| 29 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 30 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 31 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 33 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 34 | 4706-063 | BUMPER, FRONT-PTD BLK | 1 | $275.95 | |
| 35 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 36 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 37 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 38 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 |
