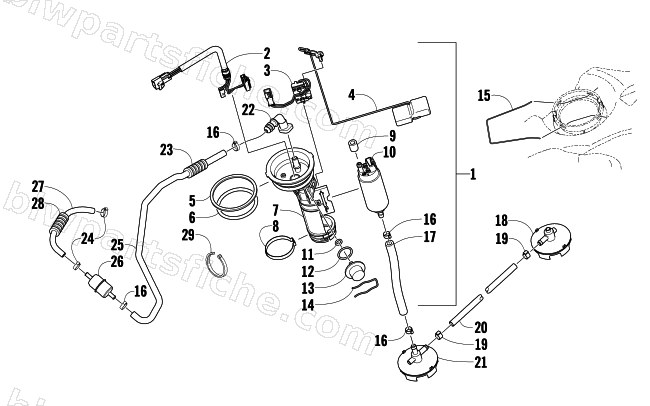

2009 Arctic Cat Z1 BEARCAT XT — FUEL PUMP ASSEMBLY
2009 Z1 BEARCAT XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-189 | PUMP,FUEL-RETURNLESS-4 STROKE | 1 | $1,124.95 | |
| 3 | 2670-191 | SENSOR,FUEL LEVEL-KIT | 1 | $133.95 | |
| 5 | 0470-613 | SEAL,FUEL PUMP | 1 | $2.88 | |
| 6 | 1670-917 | O-RING, 62MMX6MM - PFA-76 | 1 | $15.11 | |
| 7 | 1670-905 | R/B 2670-188 | 1 | $66.95 | |
| 8 | 1670-910 | CLAMP | 1 | $4.95 | |
| 9 | 1670-961 | SEAL/PUMP OUTLET | 1 | $33.95 | |
| 10 | 1670-531 | PUMP,FUEL- (V/N F20000107) | 1 | $335.95 | |
| 11 | 1670-532 | O-RING,REGULATOR-SMALL | 1 | $3.71 | |
| 12 | 1670-533 | O-RING,REGULATOR-LARGE | 1 | $3.99 | |
| 13 | 1670-536 | REGULATOR, PRESSURE | 1 | $262.95 | |
| 14 | 1670-908 | RETAINER/REGULATOR | 1 | $6.34 | |
| 15 | 1670-911 | CLIP,RETAINER | 1 | $13.73 | |
| 16 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 17 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 18 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 19 | 0610-704 | CLAMP,HOSE-10.1MM TO 11.8MM | 1 | $2.75 | |
| 20 | 1670-886 | HOSE,FUEL-RIGID-17.5" CTL | 1 | $46.95 | |
| 21 | 1670-701 | PICKUP,FUEL-(MP16)TOP BARB | 1 | $93.95 | |
| 22 | 1670-878 | FITTING,QUICK CONNECTOR-3/8X5/16X90 DEG | 1 | $16.49 | |
| 23 | 3706-407 | LOOM,1/2 NYLON-8"-CTL | 1 | $1.95 | |
| 24 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 25 | 0610-803 | HOSE,GASLINE-FORMED-PUMP TO FILTER-XT | 1 | $71.95 | |
| 26 | 1670-825 | FILTER,FUEL | 1 | $45.95 | |
| 27 | 0610-706 | HOSE,GASLINE-FORMED-FILTER TO ENGINE | 1 | $37.95 | |
| 28 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
