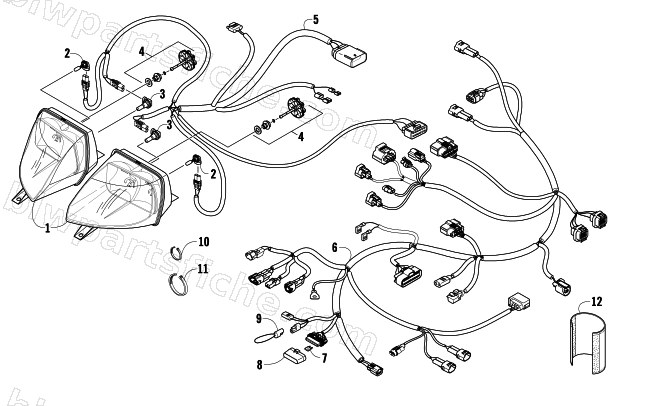

2009 Arctic Cat F8 EFI — HEADLIGHT AND WIRING ASSEMBLIES
2009 F8 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-808 | HEADLIGHT,RH BLK-ASSY | 1 | $212.95 | |
| 1 | 0609-809 | HEADLIGHT,LH BLK-ASSY | 1 | $216.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-423 | HARNESS,CONSOLE-2-STROKE | 1 | $202.95 | |
| 6 | 1686-496 | HARNESS,MAIN-09 F8 | 1 | $869.95 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 8 | 0609-889 | COVER,FUSE HOLDER | 1 | $22.01 | |
| 9 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 12 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 |
