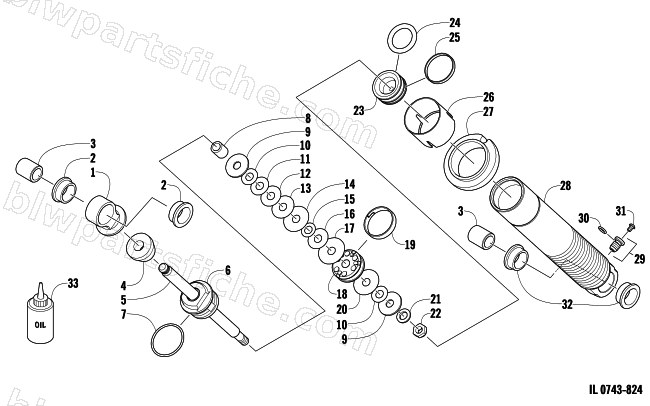

FRONT SUSPENSION SHOCK ABSORBER
2009 F8 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-593 | SHOCK,SKI-ZERO PRO-16.70" | 1 | $439.95 | |
| 1 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 2 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 3 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 4 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 5 | 3604-508 | SHAFT,SHOCK-.498 X 8.65 TLG | 1 | $122.95 | |
| 6 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 7 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 8 | 2603-819 | SPACER,SHOCK-.750" | 1 | $19.95 | |
| 9 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 10 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 13 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 14 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 15 | 2603-044 | VALVE,SHOCK- .700 DIA X .008 | 1 | $5.95 | |
| 16 | 2603-072 | VALVE,SHOCK-1.000 DIA X .006 | 1 | $5.95 | |
| 17 | 2603-132 | VALVE,SHOCK-1.300 DIA X .006 | 1 | $5.95 | |
| 18 | 1604-731 | PISTON, .052 ORIFICE | 1 | $33.95 | |
| 19 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 20 | 2603-124 | VALVE,SHOCK-1.250 DIA X .008 | 1 | $5.95 | |
| 21 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 22 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 23 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 24 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 25 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 26 | 2603-012 | SLEEVE,PROTECTOR-ALUM.SHOCK - BLK | 1 | $6.06 | |
| 27 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 28 | 2603-400 | BODY,SKI SHOCK-8.966-ALUM | 1 | $332.95 | |
| 29 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 30 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 31 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 32 | 2604-164 | BUSHING,SHOCK-REAR ARM-GRAY | 1 | $9.59 | |
| 33 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
