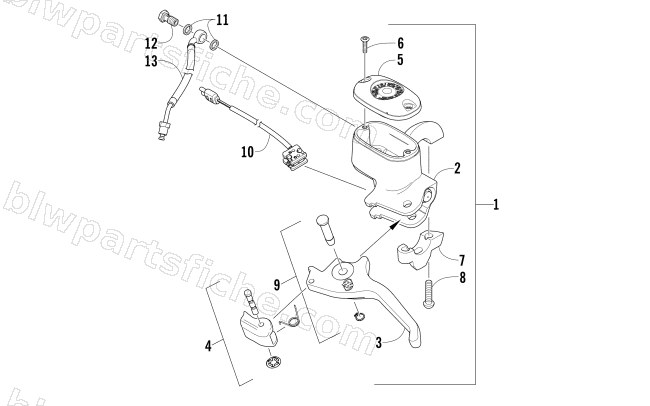

2009 Arctic Cat F8 EFI LXR — HYDRAULIC BRAKE CONTROL ASSEMBLY
2009 F8 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-930 | 1/2" FULL ASSEMBLY-BRAKE | 1 | $333.95 | |
| 2 | 1602-929 | 1/2" PISTON SUB-ASSY W/ RESERVOIR BODY | 1 | $333.95 | |
| 3 | 1602-931 | LEVER & PARK LEVER SUB-ASSY | 1 | $120.95 | |
| 5 | 1602-933 | RESERVOIR COVER SUB-ASSYW/GASKET | 1 | $128.95 | |
| 6 | 1602-934 | RESERVOIR COVER SCREWS | 1 | $20.63 | |
| 7 | 1602-935 | CLAMP-BRAKE | 1 | $41.95 | |
| 8 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 9 | 1602-937 | PIVOT PIN & SNAP RING-BRAKE | 1 | $49.95 | |
| 10 | 1602-938 | BRAKE LIGHT SWITCH | 1 | $84.95 | |
| 11 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 12 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 13 | 1602-926 | HOSE,BRAKELINE-BRAIDED-35" | 1 | $91.95 |
