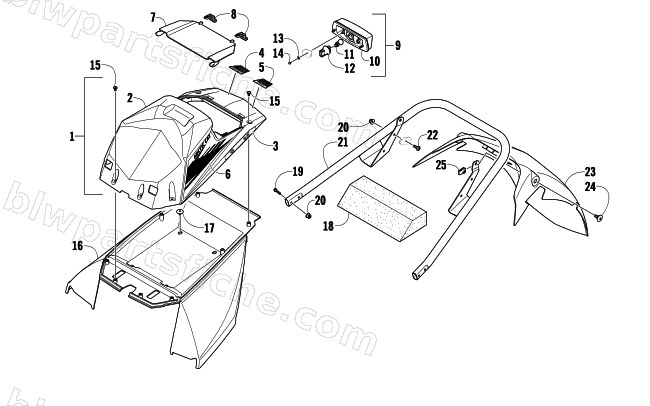

2009 Arctic Cat F570 — REAR BUMPER, STORAGE BOX, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2009 F570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-572 | BOX,STORAGE-BLK-W/DECAL | 1 | $379.95 | |
| 2 | 2718-470 | BOX,STORAGE-REAR BLK-W/O DECALS | 1 | $248.95 | |
| 3 | 8611-182 | DECAL,REFLECTOR-RED-RH | 1 | $26.95 | |
| 3 | 8611-183 | DECAL,REFLECTOR-RED-LH | 1 | $26.95 | |
| 4 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 5 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 6 | 8611-404 | DECAL,REAR FENDER-GRN RH | 1 | $53.95 | |
| 6 | 8611-405 | DECAL,REAR FENDER-GRN LH | 1 | $53.95 | |
| 7 | 4606-732 | LID,STORAGE BOX-MOLD BLK | 1 | $24.95 | |
| 8 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 9 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 10 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 11 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 12 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 13 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 16 | 4706-284 | FENDER,REAR-ROUTED BLK | 1 | $200.95 | |
| 17 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 0617-552 | FOAM, CLOSE-OFF-SNOW FLAP-08 F/C | 1 | $19.25 | |
| 19 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 1707-292 | BUMPER,REAR-PTD PLATINUM-F/C | 1 | $137.95 | |
| 22 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 23 | 5606-118 | SNOWFLAP,W/8611-017 DECAL | 1 | $217.95 | |
| 24 | 0423-416 | SCREW, BOX MOUNT | 1 | $2.75 | |
| 25 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 |
