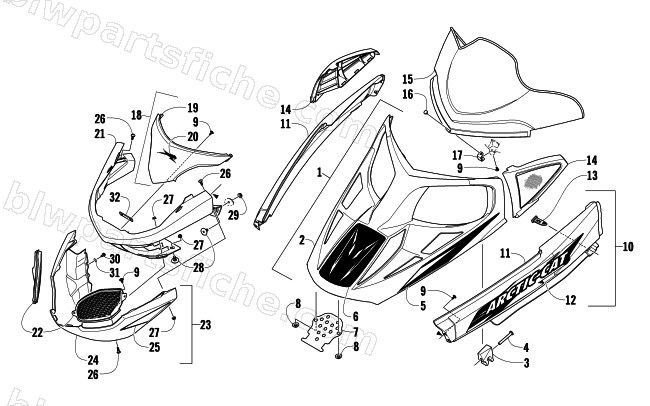

2009 Arctic Cat F570 — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2009 F570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-616 | LID, HOOD-GRN-W/DECALS | 1 | $282.95 | |
| 2 | 7999-632 | LID, HOOD-GRN-MFG ASSY-W/O VENTS | 1 | $189.95 | |
| 3 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 3 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 4 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 5 | 8611-418 | DECAL,HOOD LID-GRN RH | 1 | $49.95 | |
| 5 | 8611-419 | DECAL,HOOD LID-GRN LH | 1 | $49.95 | |
| 6 | 8611-403 | DECAL,HOOD-GRN CREST | 1 | $37.95 | |
| 7 | 5606-042 | BRKT, LID HINGE-08 PROD | 1 | $33.95 | |
| 8 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 2718-704 | SPAR,FRONT-RH-BLK/GRN-W/DECALS F/C | 1 | $57.95 | |
| 10 | 2718-553 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $57.95 | |
| 11 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 11 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 12 | 8611-414 | DECAL,FRT SPAR-GRN RH-"ARCTIC CAT" | 1 | $160.95 | |
| 12 | 8611-415 | DECAL,FRT SPAR-GRN LH-"ARCTIC CAT" | 1 | $85.95 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 5606-920 | BEZEL,INTAKE-RH-GRN ASSY | 1 | $37.59 | |
| 14 | 5606-921 | BEZEL,INTAKE-LH-GRN ASSY | 1 | $54.95 | |
| 15 | 5606-960 | WINDSHIELD,LOW-TINT | 1 | $200.95 | |
| 16 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 17 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 18 | 2718-548 | FACIA,BUMPER-UPR GRN-W/DECALS | 1 | $46.95 | |
| 19 | 4606-519 | FACIA,BUMPER-UPPER-MOLD GRN | 1 | $79.95 | |
| 20 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 21 | 4606-512 | BUMPER,FRONT CLIP-MOLD BLK | 1 | $141.95 | |
| 22 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 22 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 23 | 2718-544 | FACIA,BUMPER-LWR BLK-W/DECALS | 1 | $99.95 | |
| 24 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 25 | 8611-416 | DECAL,LWR FIA-FRT BUMPER-RH | 1 | $27.95 | |
| 25 | 8611-417 | DECAL,LWR FIA-FRT BUMPER-LH | 1 | $26.95 | |
| 26 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 27 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 28 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 29 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 30 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 31 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 5606-953 | SPACER,UPPER FASCIA | 1 | $3.44 |
