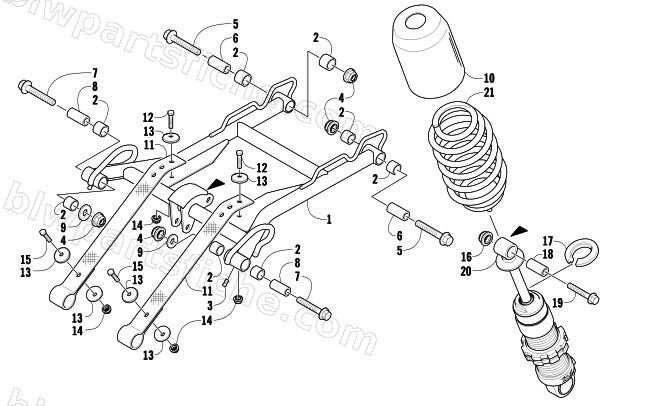

REAR SUSPENSION FRONT ARM ASSEMBLY
2009 CFR8
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-401 | ARM,FRONT-FABR - BLK | 1 | $300.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 6 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 7 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 8 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 9 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 10 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 11 | 3604-403 | STRAP,LIMITER- 3 HOLE - 16.30" | 1 | $24.77 | |
| 12 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 13 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 14 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 15 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 16 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 17 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 18 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 19 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 20 | 1704-806 | SHOCK,FRT ARM-11.77"-FOX | 1 | $421.95 | |
| 21 | 1704-736 | SPRING,COMP - 90/250# X 8.25"-PTD BLK | 1 | $32.95 |
