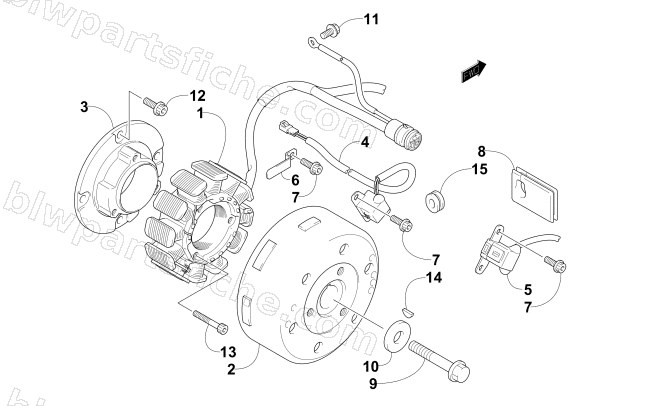

MAGNETO
2009 CFR8
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-711 | STATOR ASSY | 1 | $1,030.95 | |
| 2 | 3007-315 | FLYWHEEL | 1 | $1,110.95 | |
| 3 | 3007-546 | BASE,STATOR | 1 | $141.95 | |
| 4 | 3007-317 | SENSOR,IGNITION TIMING | 1 | $275.95 | |
| 5 | 3007-318 | SENSOR,IGNITION TIMING | 1 | $275.95 | |
| 6 | 3005-960 | PLATE, MAGNETO LEAD WIRE | 1 | $6.95 | |
| 7 | 3007-433 | BOLT | 1 | $3.16 | |
| 8 | 3005-775 | GROMMET, MAGNETO LEAD WIRE | 1 | $19.25 | |
| 9 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 10 | 3005-987 | WASHER | 1 | $5.95 | |
| 11 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 12 | 3007-449 | BOLT | 1 | $3.16 | |
| 13 | 3007-450 | BOLT | 1 | $3.85 | |
| 14 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 15 | 3007-547 | GROMMET,PULSER | 1 | $10.97 |
