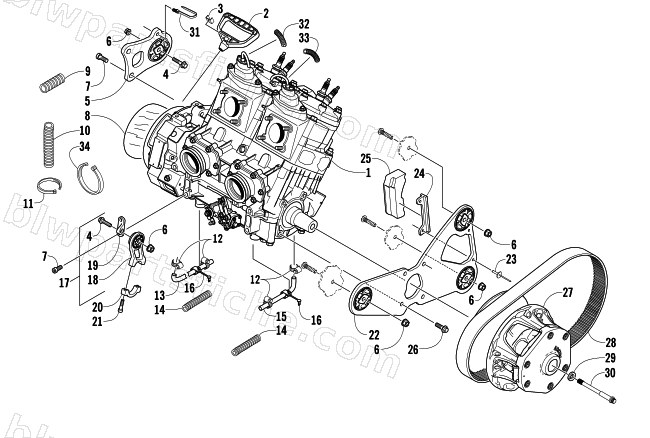

ENGINE AND RELATED PARTS
2009 CFR8 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-474 | ENGINE, 07-09 800 L/C-LONGBLOCK | 1 | $3,943.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 8020-136 | SCREW,CAP-HFH 5/16-18 X 1.75 G5 Z&Y | 1 | $15.11 | |
| 5 | 0708-581 | BRKT,MTG-ENGINE-REAR-R/H-FAB | 1 | $109.95 | |
| 6 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 7 | 1623-504 | SCREW,CAP-HSH M10X1.25X25 CL10.9 W/2353 | 1 | $1.78 | |
| 8 | 4606-425 | FOIL,PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $13.73 | |
| 9 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 10 | 1619-131 | LOOM,PROTECTIVE-3/4 ID-12"-CTL | 1 | $3.44 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 13 | 0610-774 | HOSE,WATER PUMP MAG/TH BODY(17.50") | 1 | $38.95 | |
| 14 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 15 | 0610-699 | HOSE,THROTTLE BODY PTO/WATER PUMP(13.75) | 1 | $24.77 | |
| 16 | 1623-659 | CLAMP,PUSHMOUNT-.75 | 1 | $10.97 | |
| 17 | 0708-523 | BRKT,MTG-ENGINE-FRT-R/H-ASSY | 1 | $125.95 | |
| 18 | 0708-519 | BRKT,MTG-ENGINE-FRT LOWER-R/H-FAB | 1 | $124.95 | |
| 19 | 0608-549 | BRKT,MTG-ENGINE-FRT UPPER-R/H-MACH | 1 | $42.95 | |
| 20 | 0608-467 | CAP,MTG BRKT-ENGINE-MACH | 1 | $53.95 | |
| 22 | 0708-507 | BRKT,MTG-ENGINE-L/H-ASSY | 1 | $275.95 | |
| 23 | 8060-730 | RIVET,BLIND-DH SST68 PL | 1 | $0.54 | |
| 24 | 0608-565 | PLATE,BACKING-SNUBBER-MACH | 1 | $15.11 | |
| 25 | 0608-462 | SNUBBER,RUBBER-WIDE | 1 | $20.63 | |
| 26 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 27 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 28 | 0627-046 | BELT,DRIVE-S-3C-1.448"WX45.998"OC-DC | 1 | $133.95 | |
| 29 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 30 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 31 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 32 | 1619-221 | LOOM,HIGH TEMP-1/4 X 15" | 1 | $20.63 | |
| 33 | 1619-220 | LOOM,HIGH TEMP-1/4 X 11" | 1 | $20.63 | |
| 34 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 |
