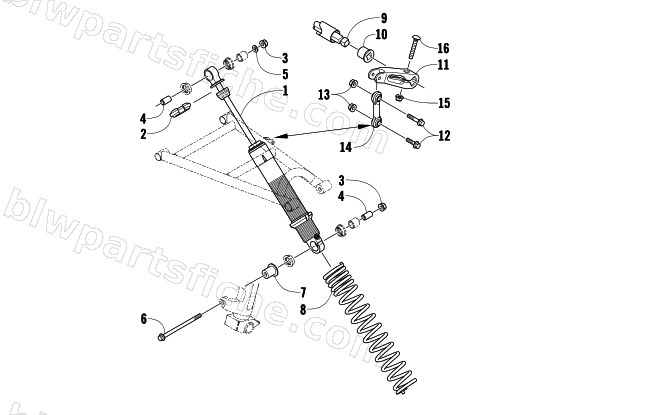

2009 Arctic Cat CF8 — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2009 CF8
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-487 | SHOCK,SKI-18.72" ZERO PRO (43") | 1 | $522.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 2603-493 | SPACER,MTG-SHOCK | 1 | $14.95 | |
| 8 | 2703-016 | SPRING,COMPRESSION-PTD PC GRN | 1 | $74.95 | |
| 9 | 2703-094 | SWAY BAR,7/16 DIA X 21.21"-PTD BLK | 1 | $112.95 | |
| 10 | 2603-648 | BEARING,SWAY BAR-HIGH TEMP | 1 | $13.73 | |
| 11 | 2703-096 | ARM,SWAYBAR 3.3"-PTD BLK | 1 | $76.95 | |
| 12 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 13 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 14 | 2603-649 | LINK,SWAY BAR-2.00" | 1 | $57.95 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 16 | 1623-584 | BOLT,CRG 5/16-18 X 2.0 GR5 Z&Y | 1 | $1.23 |
