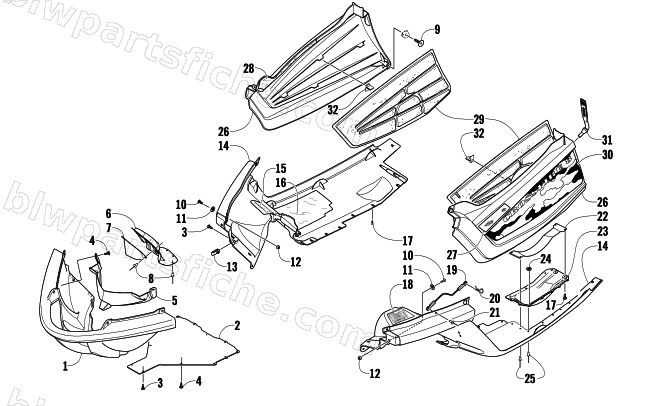

BELLY PAN ASSEMBLY
2009 CF8 LE SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 2 | 5606-483 | BELLYPAN,CENTER-BLK | 1 | $54.95 | |
| 3 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 2606-911 | SCREEN,FRT BUMPER | 1 | $34.95 | |
| 6 | 1612-853 | SHIELD,HEAT-EXHAUST OUTLET | 1 | $112.95 | |
| 7 | 1612-861 | DEFLECTOR,EXHAUST OUTLET | 1 | $45.95 | |
| 8 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 9 | 1623-739 | SCREW,RETAINING-ACCESS PANEL | 1 | $3.16 | |
| 10 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 13 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 14 | 4706-076 | BELLYPAN,R/H-BLACK-ROUTED | 1 | $224.95 | |
| 14 | 3706-429 | BELLYPAN,L/H-BLACK-ROUTED | 1 | $136.95 | |
| 15 | 4606-207 | FOIL,PROTECTIVE-BELLYPAN-UPPER | 1 | $46.95 | |
| 16 | 4606-208 | FOIL,PROTECTIVE-BELLYPAN-LOWER | 1 | $39.95 | |
| 17 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 18 | 8611-606 | DECAL,CLUTCHING-2009 CF8 | 1 | $30.95 | |
| 19 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 20 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 21 | 8061-426 | RIVET,BLIND-LF AA54 BLACK | 1 | $0.95 | |
| 22 | 5606-305 | DEFLECTOR,CLUTCH PROTECTOR | 1 | $73.95 | |
| 23 | 4606-417 | PROTECTOR,DRIVEN CLUTCH-INJ MOLD | 1 | $38.95 | |
| 24 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 25 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 26 | 4606-256 | PANEL,ACCESS-R/H-BLACK-INJ MOLD | 1 | $108.95 | |
| 26 | 4606-257 | PANEL,ACCESS-L/H-BLACK-INJ MOLD | 1 | $108.95 | |
| 27 | 7611-160 | DECAL,REFLECTOR-AMBER-R/H | 1 | $21.95 | |
| 27 | 7611-161 | DECAL,REFLECTOR-AMBER-L/H | 1 | $22.01 | |
| 28 | 5606-052 | FOIL,PROTECTIVE-ACCESS PANEL-UPPER | 1 | $3.16 | |
| 29 | 0617-502 | FOAM,ACOUSTICAL-SIDE PANEL-R/H | 1 | $60.95 | |
| 29 | 0617-503 | FOAM,ACOUSTICAL-SIDE PANEL-L/H | 1 | $60.95 | |
| 30 | 8611-594 | DECAL,ACCESS PANEL (CF8)-RH | 1 | $92.95 | |
| 30 | 8611-595 | DECAL,ACCESS PANEL (CF8)-LH | 1 | $89.95 | |
| 31 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 32 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 |
