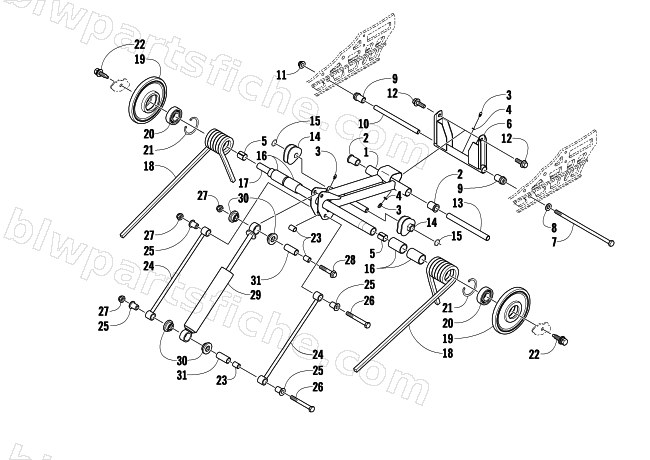

REAR SUSPENSION REAR ARM ASSEMBLY
2009 CF5 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-793 | ARM,IDLER-L/W (BLK)-FAB | 1 | $223.95 | |
| 2 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 5 | 2604-147 | BEARING,GARLOCK-11DU14 | 1 | $8.21 | |
| 6 | 1704-019 | ARM, REAR-MACH-BLK (04 PROD) | 1 | $56.95 | |
| 7 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 8 | 0623-439 | WASHER, FLAT .375X.625X.064 | 1 | $2.33 | |
| 9 | 2604-664 | BUSHING,REAR ARM-PWD METAL | 1 | $53.95 | |
| 10 | 2604-663 | AXLE,REAR ARM-INNER-6.124" | 1 | $16.49 | |
| 11 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 12 | 1623-503 | SCREW,CAP-HFH 3/8-16X0.75 W/2353 | 1 | $2.75 | |
| 13 | 2604-176 | AXLE,ALUM-.750 X 6.817-MACH | 1 | $197.95 | |
| 14 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 14 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 15 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 16 | 2604-764 | SLEEVE,SPRING-SHORT | 1 | $3.95 | |
| 17 | 3604-085 | AXLE,INNER CARRIAGE | 1 | $54.95 | |
| 18 | 1704-808 | SPRING,SUSP-.405 SQ-RH-90 DEGREE-PTD BLK | 1 | $160.95 | |
| 18 | 1704-809 | SPRING,SUSP-.405 SQ-LH-90 DEGREE-PTD BLK | 1 | $160.95 | |
| 19 | 1604-690 | WHEEL,IDL-5.63 W/1" ID(NO INSR) | 1 | $53.95 | |
| 20 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 21 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 22 | 1623-166 | SCREW,CAP-HH SEMS 3/8-16 X 1.250 BLK | 1 | $4.95 | |
| 23 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 24 | 0704-350 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 25 | 1604-498 | AXLE,LINK-FLANGED(99 PRO) | 1 | $15.11 | |
| 26 | 8020-233 | SCREW,CAP-HFH 3/8-16 X 3.50 Z&Y | 1 | $5.92 | |
| 27 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 28 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 29 | 3604-154 | SHOCK,REAR ARM - TWIN TUBE - 14.50" | 1 | $295.95 | |
| 30 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 31 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 |
