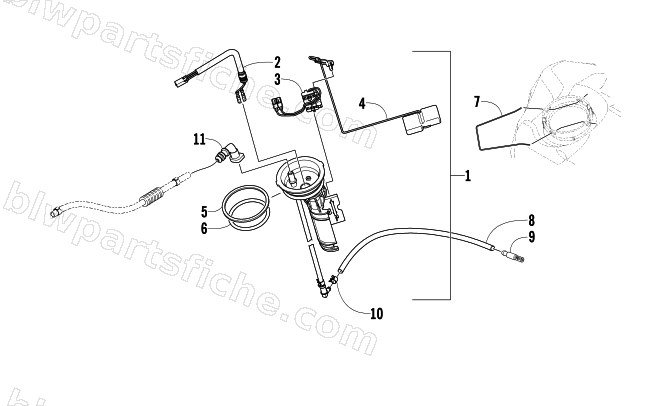

2009 Arctic Cat BEARCAT 570 — FUEL PUMP ASSEMBLY
2009 BEARCAT 570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-187 | SENDER,FUEL LEVEL-F/C | 1 | $247.95 | |
| 3 | 2670-191 | SENSOR,FUEL LEVEL-KIT | 1 | $133.95 | |
| 5 | 0470-613 | SEAL,FUEL PUMP | 1 | $2.88 | |
| 6 | 1670-973 | FITTING,QUICK CONNECTOR-5/16X5/16X90 DEG | 1 | $13.73 | |
| 7 | 1670-911 | CLIP,RETAINER | 1 | $13.73 | |
| 8 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 8 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 9 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 10 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 |
