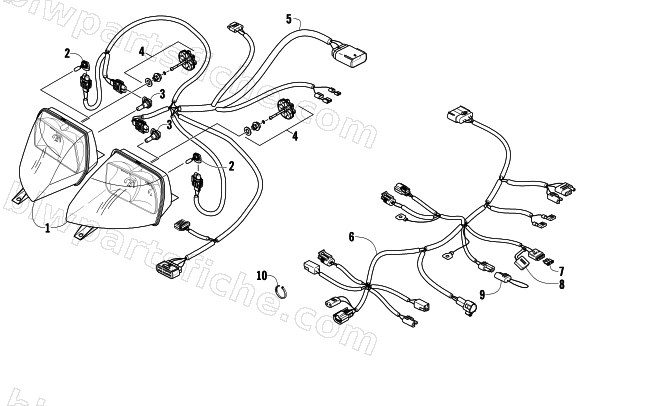

2009 Arctic Cat BEARCAT 570 XT — HEADLIGHT AND WIRING ASSEMBLIES
2009 BEARCAT 570 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-820 | HEADLIGHT,RH-ASSY-ECONOMY | 1 | $243.95 | |
| 1 | 0609-821 | HEADLIGHT,LH-ASSY-ECONOMY | 1 | $237.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-831 | BULB, HIGH BEAM-H8 | 1 | $50.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-386 | HARNESS, CONSOLE-08 F/C | 1 | $183.95 | |
| 6 | 1686-501 | HARNESS,MAIN ('09 BC 570 FC) | 1 | $283.95 | |
| 7 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 9 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
