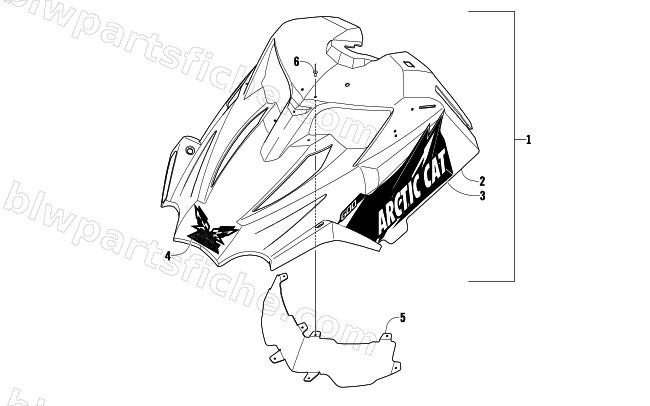

2009 Arctic Cat 600 SNO PRO — HOOD ASSEMBLY (MODIFIED RACE SLED)
2009 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-912 | HOOD,W/DECALS-MOD | 1 | $686.95 | |
| 2 | 5606-952 | HOOD,MOLDED-GRN (MOD) | 1 | $537.95 | |
| 3 | 8611-674 | DECAL,HOOD-RH | 1 | $89.95 | |
| 3 | 8611-675 | DECAL,HOOD-LH | 1 | $89.95 | |
| 4 | 8611-682 | DECAL,HOOD-CREST | 1 | $113.95 | |
| 6 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 |
