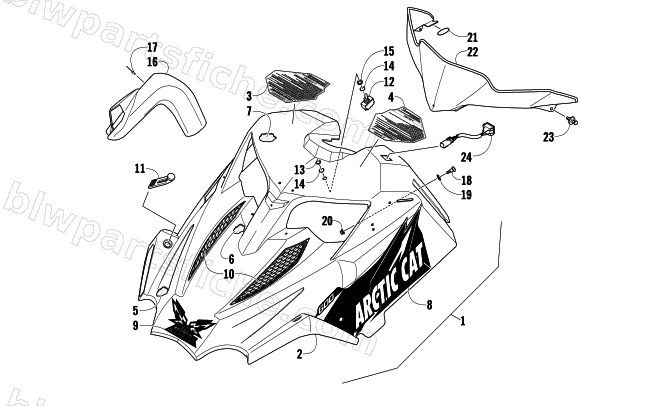

2009 Arctic Cat 600 SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2009 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-725 | HOOD W/DECALS | 1 | $692.95 | |
| 2 | 2718-726 | HOOD W/O DECALS | 1 | $525.95 | |
| 3 | 8611-302 | DECAL,CAUTION/WARNING-FRENCH-RH | 1 | $20.63 | |
| 4 | 8611-303 | DECAL,CAUTION/WARNING-ENGLISH-LH | 1 | $20.63 | |
| 5 | 0617-576 | FOAM,HOOD-RH | 1 | $16.49 | |
| 5 | 0617-577 | FOAM,HOOD-LH | 1 | $42.95 | |
| 6 | 0617-579 | FOAM,HOOD-CENTER | 1 | $37.95 | |
| 7 | 0617-578 | FOAM,HOOD-REAR | 1 | $37.95 | |
| 8 | 8611-674 | DECAL,HOOD-RH | 1 | $89.95 | |
| 8 | 8611-675 | DECAL,HOOD-LH | 1 | $89.95 | |
| 9 | 8611-682 | DECAL,HOOD-CREST | 1 | $113.95 | |
| 10 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 10 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 11 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 12 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 13 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 14 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 15 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 16 | 5606-641 | DUCT,BRAKE | 1 | $78.95 | |
| 17 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 18 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 5606-986 | WINDSHIELD,LOW-RACE | 1 | $104.95 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 0630-258 | INDICATOR,"CHECK ENG"-TEMP | 1 | $108.95 |
