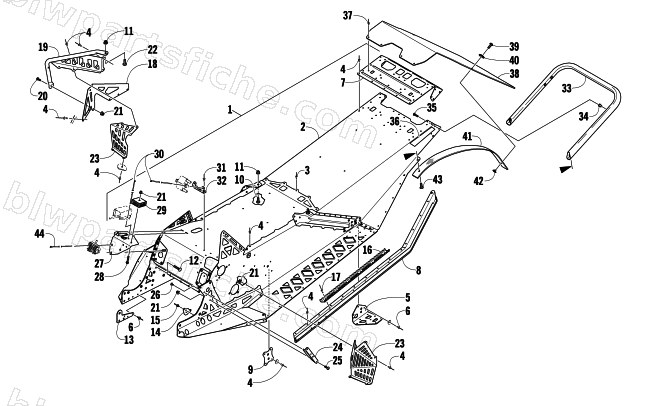

2009 Arctic Cat 600 SNO PRO — CHASSIS, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2009 600 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-299 | CHASSIS,ASSY-PTD BLK | 1 | $3,412.95 | |
| 2 | 4706-748 | TUNNEL,REAR-PTD BLK | 1 | $273.95 | |
| 3 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 4 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 5 | 4706-834 | BRKT,SUSPENSION MTG-RH REAR PTD BLK | 1 | $37.95 | |
| 5 | 4706-835 | BRKT,SUSPENSION MTG-LH REAR PTD BLK | 1 | $37.95 | |
| 6 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 7 | 4706-749 | PLATE,REAR TUNNEL-CLOSE OFF-PTD BLK | 1 | $102.95 | |
| 8 | 4706-750 | ROLL,TUNNEL-FORMED RH-PTD BLK | 1 | $88.95 | |
| 8 | 4706-751 | ROLL,TUNNEL-FORMED LH-PTD BLK | 1 | $85.95 | |
| 9 | 6606-061 | PLATE,BACKING-FRT ARM | 1 | $32.95 | |
| 10 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 13 | 5606-628 | BRACE,SUPPORT-INNER-Z&Y | 1 | $33.95 | |
| 14 | 5606-672 | PLATE,BACKING-PTO MTG-Z&Y | 1 | $13.73 | |
| 15 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 16 | 4706-307 | PLATE,GRIP-PTD GRN | 1 | $51.95 | |
| 17 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 18 | 4706-510 | GUSSET,TOE STOP-RH PTD BLK | 1 | $42.95 | |
| 18 | 4706-511 | GUSSET,TOE STOP-LH PTD BLK | 1 | $42.95 | |
| 19 | 4706-514 | HOOK,TOE-RH PTD BLK | 1 | $73.95 | |
| 19 | 4706-515 | HOOK,TOE-LH PTD BLK | 1 | $73.95 | |
| 20 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 21 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 22 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 23 | 4706-516 | SHIELD,TOE-RH PTD BLK | 1 | $69.95 | |
| 23 | 4706-517 | SHIELD,TOE-LH PTD BLK | 1 | $69.95 | |
| 24 | 0608-585 | BRKT,SNUBBER-CHASSIS-MACH | 1 | $23.39 | |
| 25 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 26 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 | |
| 27 | 5606-966 | PANEL,ELECTRICAL | 1 | $19.25 | |
| 28 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 29 | 0630-181 | REGULATOR,VOLTAGE-FW 2 WIRE SQ | 1 | $117.95 | |
| 30 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 31 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 32 | 5606-536 | BRKT,MTG-COIL | 1 | $24.77 | |
| 33 | 4706-606 | BUMPER,REAR-W/INSERTS | 1 | $56.95 | |
| 34 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 35 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 36 | 8611-676 | DECAL,REFLECTOR-RED RH | 1 | $20.63 | |
| 36 | 8611-677 | DECAL,REFLECTOR-RED LH | 1 | $20.63 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 5606-990 | SNOWFLAP,SNO CROSS | 1 | $124.95 | |
| 39 | 8017-607 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 BLK Z | 1 | $3.16 | |
| 40 | 1623-242 | WASHER,BACKING-7MM IDX11/8OD-BLK | 1 | $2.47 | |
| 41 | 3604-157 | STRAP,SNOWFLAP RESTRAINT | 1 | $20.63 | |
| 42 | 1623-608 | NUT,PROPELLAR-1/4-20 X .300"BARREL | 1 | $2.06 | |
| 43 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 44 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
