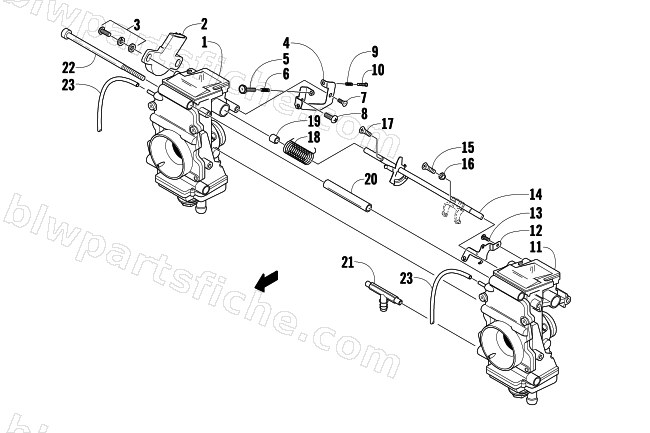

2009 Arctic Cat 600 SNO PRO — CARBURETOR - EXTERNAL PARTS
2009 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6506-311 | SENSOR | 1 | $223.95 | |
| 3 | 6506-085 | SCREW | 1 | $1.37 | |
| 4 | 6506-331 | BRACKET | 1 | $50.95 | |
| 5 | 6506-061 | ADJUSTER SCREW | 1 | $20.63 | |
| 6 | 6506-062 | SPRING | 1 | $5.51 | |
| 7 | 6506-063 | SCREW | 1 | $1.37 | |
| 8 | 6506-064 | SCREW | 1 | $1.37 | |
| 9 | 6506-056 | SPRING | 1 | $3.95 | |
| 10 | 6506-134 | SCREW | 1 | $3.95 | |
| 12 | 6506-326 | BRACKET | 1 | $45.95 | |
| 13 | 6506-075 | SCREW | 1 | $3.16 | |
| 14 | 6506-412 | SHAFT ASSY | 1 | $144.95 | |
| 15 | 6506-042 | SCREW | 1 | $3.44 | |
| 16 | 6506-041 | RING | 1 | $33.95 | |
| 17 | 6506-046 | SCREW | 1 | $3.44 | |
| 18 | 6506-330 | TORSION SPRING | 1 | $24.77 | |
| 19 | 6506-048 | SPACER | 1 | $3.95 | |
| 20 | 6506-152 | SPACER | 1 | $34.95 | |
| 21 | 6506-127 | NIPPLE ASSY. | 1 | $38.95 | |
| 22 | 6506-065 | BOLT | 1 | $17.87 | |
| 23 | 6506-253 | HOSE | 1 | $20.63 |
