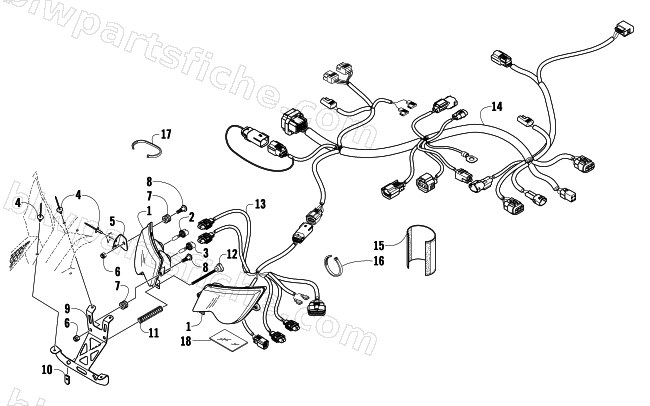

2009 Arctic Cat 600 SNO PRO CROSS COUNTRY — HEADLIGHT AND WIRING ASSEMBLY
2009 600 SNO PRO CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 1 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 2 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 5606-390 | BRKT,HEADLIGHT-RH | 1 | $16.49 | |
| 5 | 5606-391 | BRKT,HEADLIGHT-LH | 1 | $54.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 8 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 9 | 5606-392 | BRKT,HEADLIGHT-MIDDLE | 1 | $49.95 | |
| 10 | 1623-052 | NUT,U | 1 | $0.95 | |
| 11 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 12 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 13 | 1686-561 | HARNESS,HOOD-09 AC 600 | 1 | $233.95 | |
| 14 | 1686-564 | HARNESS,MAIN-09 RACE | 1 | $524.95 | |
| 15 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 | |
| 16 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 |
