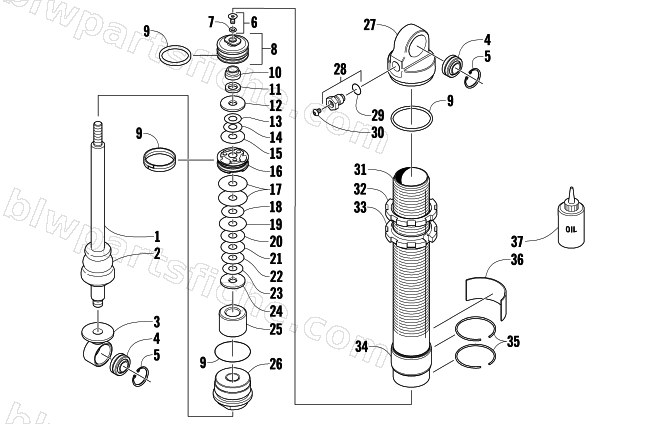

2009 Arctic Cat 600 SNO PRO CROSS COUNTRY — FRONT SUSPENSION SHOCK ABSORBER
2009 600 SNO PRO CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-559 | SHOCK,SKI-FOX (CROSS COUNTRY) | 1 | $494.95 | |
| 1 | 2603-796 | SHAFT,.620OD X 10.250 TLG | 1 | $58.95 | |
| 2 | 2603-793 | BUMPER,.620 SHAFT X 1.950 TLG | 1 | $32.95 | |
| 3 | 2603-794 | EYELET,ASSY-.498 SHAFT | 1 | $185.95 | |
| 4 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 5 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 6 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 7 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 8 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 9 | 2603-795 | KIT,REBUILD-SKI SHOCK | 1 | $184.95 | |
| 10 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 11 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 12 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 13 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 14 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 15 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 16 | 2603-834 | PISTON,DAMPING-1.459 BORE-.035 ORIFACE | 1 | $110.95 | |
| 17 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 18 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 19 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 20 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 21 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 22 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 23 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 24 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 25 | 2603-835 | SPACER,SHAFT-.640 X 1.25 X 1.50 | 1 | $53.95 | |
| 26 | 2603-203 | BEARING, .625 ASSY (END CAP) | 1 | $105.95 | |
| 27 | 2603-792 | BODY,CAP ASSY-1.459 BORE | 1 | $147.95 | |
| 28 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 29 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 2603-791 | BODY,1.459 BORE-11.300 TLG | 1 | $242.95 | |
| 32 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 33 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 34 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 35 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 36 | 2603-475 | DECAL,SHOCK BODY-ZERO PRO-5.100X.800 | 1 | $22.01 | |
| 37 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
