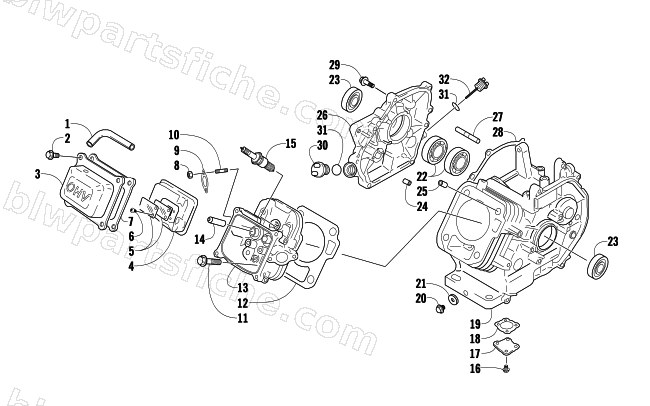

CYLINDER AND CRANKCASE
2009 120 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-362 | HOSE, AIR BREATHER,M7X11X600 | 1 | $46.95 | |
| 2 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 3 | 1691-170 | KIT,CYLINDER HEAD COVER (0691-830) | 1 | $20.95 | |
| 4 | 0691-393 | BODY ASSY, AIR BREATHER | 1 | $64.95 | |
| 5 | 0693-226 | VALVE SET, REED | 1 | $30.95 | |
| 6 | 0693-305 | SCREW,M4X8 | 1 | $1.95 | |
| 7 | 0691-387 | GASKET, CYLINDER HEAD COVER | 1 | $16.49 | |
| 8 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 9 | 0691-852 | GASKET,EXHAUST | 1 | $20.63 | |
| 10 | 1691-165 | STUD BOLT,M8X16 | 1 | $4.95 | |
| 11 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 12 | 0691-386 | GASKET, CYLINDER HEAD | 1 | $21.95 | |
| 13 | 0694-045 | KIT,CYLINDER HEAD (0694-034) | 1 | $235.95 | |
| 14 | 0691-545 | GUIDE, VALVE | 1 | $30.95 | |
| 15 | 0217-703 | SPARK PLUG, BPR6ES | 1 | $4.54 | |
| 16 | 0693-307 | BOLT,M6X16 | 1 | $3.16 | |
| 17 | 0694-022 | COVER,OIL LEVEL SENSOR | 1 | $9.95 | |
| 18 | 1691-153 | GASKET, OIL LEVEL | 1 | $19.25 | |
| 19 | 0694-046 | KIT,CYLINDER ASSY (0694-001) | 1 | $773.95 | |
| 20 | 0693-253 | PLUG,10MM | 1 | $4.40 | |
| 21 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 22 | 0691-374 | BALL BEARING ,M20X50X14 | 1 | $36.95 | |
| 23 | 0691-376 | OIL SEAL ,M22X41.3X7.0 | 1 | $20.63 | |
| 24 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 25 | 3008-199 | PIN, KNOCK(ALIGNMENT) | 1 | $3.16 | |
| 26 | 0694-047 | KIT,CRANCASE COVER ASSY (0694-002) | 1 | $186.95 | |
| 27 | 0691-844 | SHAFT, GOVERNOR | 1 | $18.95 | |
| 28 | 0691-834 | GASKET,CRANKCASE | 1 | $27.95 | |
| 29 | 0694-035 | BOLT,6X28 '02 120 F/C | 1 | $2.95 | |
| 30 | 0694-004 | PLUG ASSY,ENGINE OIL | 1 | $26.95 | |
| 31 | 0693-298 | O-RING D:2,4 ID:15.8 | 1 | $4.40 | |
| 32 | 0694-003 | GUAGE ASSY,ENGINE OIL LEVEL | 1 | $29.95 |
