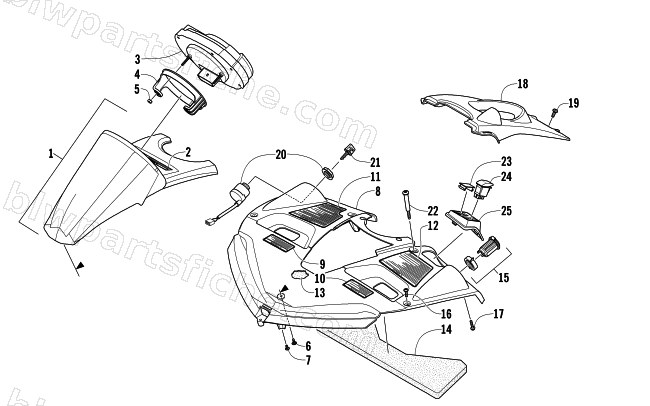

2008 Arctic Cat TZ1 TOURING — CONSOLE ASSEMBLY
2008 TZ1 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-212 | HOUSING,SPEEDO/TACH-BLK-W/DECAL | 1 | $38.95 | |
| 1 | 4606-575 | HOUSING,SPEEDO-MOLD BLK | 1 | $42.95 | |
| 2 | 7611-572 | DECAL,WARNING-HANDLEBAR RISER | 1 | $53.95 | |
| 3 | 0620-346 | SPEEDO,LCD-08' T Z1-CALIB-DLX | 1 | $752.95 | |
| 4 | 0620-322 | BRKT,RETAINER-SPEEDO/TACH | 1 | $9.59 | |
| 5 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 7 | 2718-437 | BASE,CONSOLE-BLK-W/DECALS TZ1 | 1 | $139.95 | |
| 8 | 2718-425 | BASE, CONSOLE-BLK W/DECALS | 1 | $140.95 | |
| 9 | 7611-575 | DECAL,CAUTION-ENGLISH | 1 | $15.11 | |
| 10 | 7611-574 | DECAL,CAUTION-FRENCH | 1 | $15.11 | |
| 11 | 8611-276 | DECAL, WARNING-TOUR-FRENCH | 1 | $70.95 | |
| 12 | 8611-275 | DECAL, WARNING-TOUR-ENGLISH | 1 | $32.95 | |
| 13 | 0617-558 | FOAM,CONSOLE-FRT | 1 | $30.95 | |
| 14 | 0617-559 | FOAM,CONSOLE-REAR | 1 | $30.95 | |
| 15 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 16 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 17 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 4606-477 | CLOSE OFF,HANDLEBAR-MOLD BLK | 1 | $32.95 | |
| 18 | 4706-358 | CLOSE OFF,HANDLEBAR-TOUR-BLK-ROUTED | 1 | $39.95 | |
| 19 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 20 | 0609-698 | SWITCH, IGNITION-W/KEY | 1 | $156.95 | |
| 21 | 0409-059 | KEY,BLANK (A SERIES) | 1 | $32.95 | |
| 22 | 1623-669 | SCREW,SHOULDER - TSTRH M6X 1.0 X 80 MM | 1 | $4.26 | |
| 23 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 24 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 25 | 5606-236 | HOUSING, SWITCH/CONSOLE-TOUR | 1 | $13.73 |
