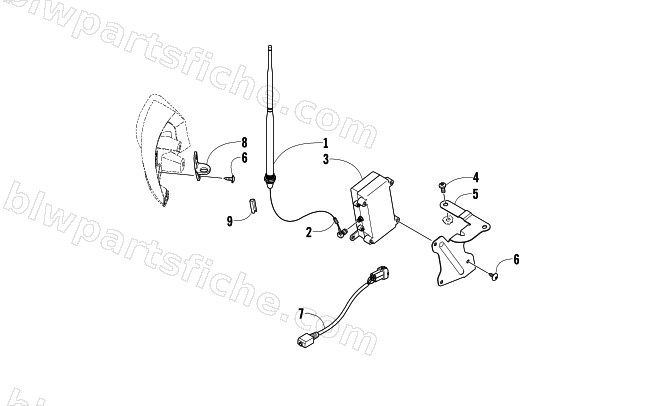

2008 Arctic Cat TZ1 TOURING LXR — RADIO AND WIRING ASSEMBLIES
2008 TZ1 TOURING LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4262-039 | HLMT HEADSET W/COIL CORD | 1 | $164.95 | |
| 1 | 0630-249 | ANTENNA,RADIO/COMM-813MM | 1 | $162.95 | |
| 3 | 0620-309 | MODULE, RADIO COMMUNICATIONS | 1 | $646.95 | |
| 4 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 5 | 5606-303 | BRKT, RADIO MODULE | 1 | $17.95 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 1686-286 | HARNESS, 3.5 MM AUDIO JACK | 1 | $136.95 | |
| 8 | 5606-259 | BRKT, MOUNTING - ANTENNA | 1 | $6.95 | |
| 9 | 1623-518 | CLIP, PLASTIC WIRE-RADIO-1" | 1 | $16.95 |
