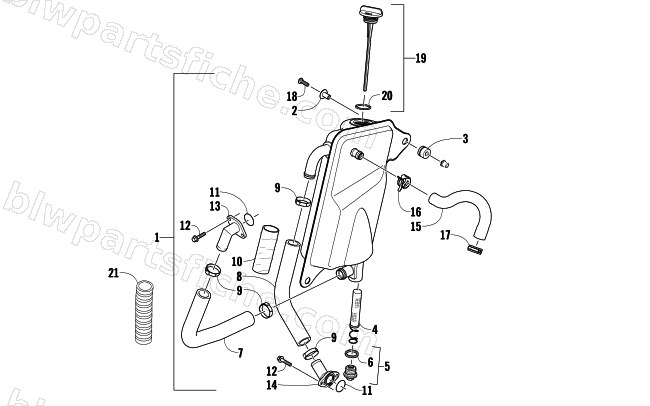

2008 Arctic Cat TZ1 TOURING LXR — OIL TANK ASSEMBLY
2008 TZ1 TOURING LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-934 | TANK,OIL ASSY-Z1/TZ1 | 1 | $564.95 | |
| 2 | 1623-573 | BUSHING,FLANGED-OIL TANK | 1 | $15.11 | |
| 3 | 1670-729 | GROMMET, OIL TANK | 1 | $1.37 | |
| 4 | 1670-983 | SCREEN,OIL TANK | 1 | $29.95 | |
| 5 | 1670-914 | PLUG,DRAIN-OIL TANK | 1 | $23.39 | |
| 6 | 1670-926 | O-RING,OIL TANK DRAIN PLUG | 1 | $0.68 | |
| 7 | 0610-641 | HOSE, OIL FEED | 1 | $62.95 | |
| 8 | 0610-642 | HOSE, OIL RETURN | 1 | $50.95 | |
| 9 | 1623-515 | CLAMP,HOSE-29.9MM TO 33.1MM | 1 | $4.40 | |
| 10 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 11 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 12 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 13 | 1670-727 | FITTING, OIL SUPPLY-ENGINE | 1 | $85.95 | |
| 14 | 1670-726 | FITTING, OIL RETURN-ENGINE | 1 | $85.95 | |
| 15 | 0610-664 | HOSE, BREATHER-OIL TANK | 1 | $33.95 | |
| 16 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 17 | 1623-289 | CLAMP,HOSE-SPRING (12W X 26) | 1 | $3.57 | |
| 18 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
