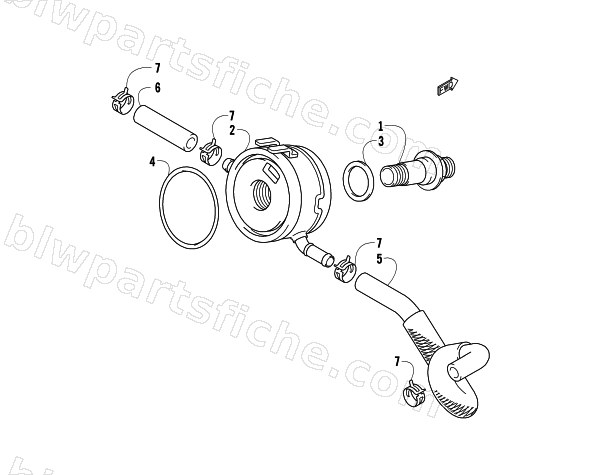

OIL COOLER ASSEMBLY
2008 TZ1 TOURING LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-173 | BOLT,OIL COOLER UNION | 1 | $30.95 | |
| 2 | 3007-174 | COOLER ASSY,OIL | 1 | $785.95 | |
| 3 | 3007-175 | WASHER,OIL COOLER UNION (25X34X0.7) | 1 | $4.26 | |
| 4 | 3007-176 | O RING,OIL COOLER(ID:63.9,DD:3.1) | 1 | $16.49 | |
| 5 | 3007-177 | HOSE,OIL COOLER WATER INLET | 1 | $43.95 | |
| 6 | 3006-601 | HOSE,TANK TO O/C | 1 | $71.95 | |
| 7 | 3423-424 | CLIP, AIRBOX | 1 | $5.78 |
