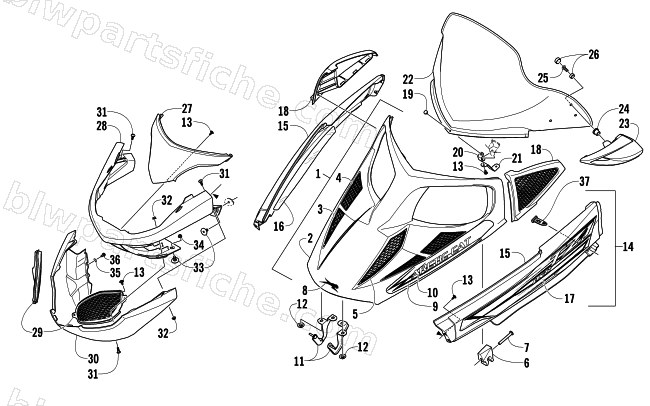

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2008 TZ1 TOURING LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-406 | LID, HOOD-W/DECALS-LXR-TOUR | 1 | $324.95 | |
| 2 | 7999-794 | LID,HOOD-BLK-MFG ASSY | 1 | $189.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 8611-202 | DECAL,HOOD LID-"ARCTIC CAT" RH | 1 | $166.95 | |
| 9 | 8611-203 | DECAL,HOOD LID-"ARCTIC CAT" LH | 1 | $171.95 | |
| 10 | 8611-214 | DECAL,CHROME EMBLEM | 1 | $73.95 | |
| 11 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 11 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 14 | 2718-412 | SPAR,FRONT-RH W/DECAL-TZ1 LXR | 1 | $220.95 | |
| 14 | 2718-413 | SPAR,FRONT-LH W/DECAL-TZ1 LXR | 1 | $220.95 | |
| 15 | 3706-976 | SPAR,FRONT-RH-PTD RED MET | 1 | $154.95 | |
| 15 | 3706-977 | SPAR,FRONT-LH-PTD RED MET | 1 | $154.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-208 | DECAL,FRT SPAR-RH-TZ1 LXR | 1 | $103.95 | |
| 17 | 8611-209 | DECAL,FRT SPAR-LH-TZ1 LXR | 1 | $103.95 | |
| 18 | 4706-607 | KIT,INTAKE BEZEL-BLK | 1 | $93.95 | |
| 19 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 20 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 21 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 23 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 27 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 28 | 3706-975 | BUMPER,FRONT CLIP-PTD RED MET | 1 | $136.95 | |
| 29 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 29 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 30 | 3706-980 | FACIA, BUMPER-LOWER-PTD RED MET | 1 | $133.95 | |
| 31 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 32 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 33 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 34 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 35 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 36 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 37 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
