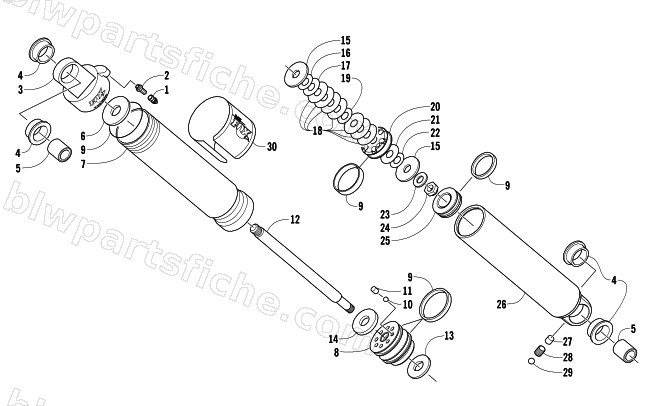

2008 Arctic Cat M8 EFI 162 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2008 M8 EFI 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-606 | SHOCK,FLOAT- 16"- REAR ARM-ASSY | 1 | $771.95 | |
| 0 | 2603-498 | REBUILD KIT,FLOAT W/RESERVOIR | 1 | $178.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 2603-613 | SPACER,AIR VOLUME REDUCER-.1875" | 1 | $16.95 | |
| 7 | 2603-722 | SLEEVE,AIR ASSY-7.915 TLG (FLOAT) | 1 | $233.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 3604-320 | SHAFT,SHOCK-.498 X 8.150" | 1 | $152.95 | |
| 13 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 14 | 3604-005 | SPACER,.504ID X 1.23OD X .200THK 6061AL | 1 | $29.95 | |
| 15 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 16 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 17 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 18 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 19 | 0603-880 | VALVE, SHOCK .900 X.012(040-12-090) | 1 | $12.95 | |
| 20 | 1603-314 | PISTON,0.039 ORIFICE | 1 | $120.95 | |
| 21 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 22 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 26 | 2603-335 | BODY,SHOCK-IMPACT ALUM-7.725"- (FLOAT) | 1 | $200.95 | |
| 27 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 28 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 29 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 30 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 |
