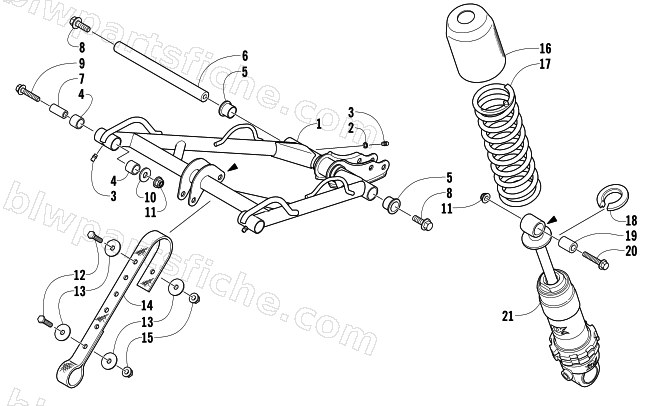

2008 Arctic Cat M8 EFI 153 SNO PRO — REAR SUSPENSION FRONT ARM ASSEMBLY
2008 M8 EFI 153 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-598 | ARM,FRONT-W/PIVOT (ORN)-FAB | 1 | $307.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 5 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 6 | 2604-591 | AXLE,ALUM-.750 X 8.636-MACH | 1 | $41.95 | |
| 7 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 8 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 9 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 10 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 11 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 12 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 13 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 14 | 2604-657 | STRAP,LIMITER-FRONT ARM | 1 | $20.63 | |
| 15 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 16 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 17 | 1704-461 | SPRING,FRONT ARM-135#D BLK | 1 | $132.95 | |
| 18 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 19 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 20 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 21 | 1704-351 | SHOCK,FRT ARM-ZERO PRO (FOX) | 1 | $421.95 |
