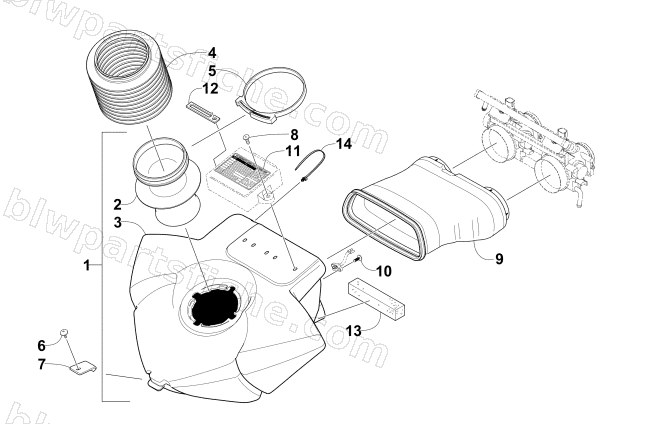

2008 Arctic Cat M8 EFI 153 SNO PRO LIMITED EDITION — AIR SILENCER ASSEMBLY
2008 M8 EFI 153 SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-719 | SILENCER,AIR-EFI-ASSY | 1 | $232.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-754 | SILENCER,AIR-EFI ASSY | 1 | $244.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 9 | 1670-613 | BOOT, EFI-ASSY (600/700) | 1 | $171.95 | |
| 10 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 11 | 8611-251 | DECAL,EFI DIAGNOSTIC CODES-08 | 1 | $4.13 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 0617-485 | FOAM,BELLYPAN/AIRBOX | 1 | $3.16 | |
| 14 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
