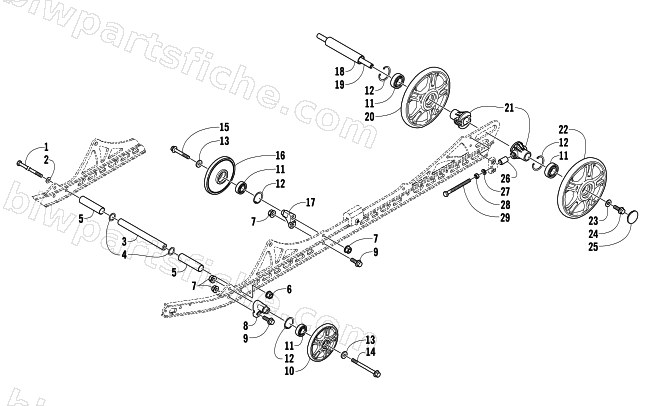

2008 Arctic Cat M1000 EFI 162 SNO PRO LIMITED EDITION — IDLER WHEEL ASSEMBLY
2008 M1000 EFI 162 SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 2 | 0623-439 | WASHER, FLAT .375X.625X.064 | 1 | $2.33 | |
| 3 | 3604-080 | AXLE, ALUM-.875 DIA X 8.750 | 1 | $47.95 | |
| 4 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 5 | 1704-718 | SPACER,FRONT ARM SHOCK-PTD BLK | 1 | $15.11 | |
| 6 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 7 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 8 | 3604-207 | BLOCK 1.904",MTG-IDLER WHEEL-DIE CAST | 1 | $29.95 | |
| 9 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 10 | 3604-386 | WHEEL,IDL-5.63 W.787"ID BLK (SPOKE) | 1 | $53.95 | |
| 11 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 12 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 13 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 14 | 8020-230 | SCREW,CAP-HFH 3/8-16 X 2.75 Z&Y | 1 | $3.44 | |
| 15 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 16 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 17 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 18 | 1704-725 | SPACER,REAR WHEEL-4.38-PTD BLK | 1 | $18.95 | |
| 19 | 2604-283 | AXLE,XBRC-.785X13.518 (3/8-16) | 1 | $33.95 | |
| 20 | 3604-073 | WHEEL,IDL-8.00 W.787"ID BLK (OPEN) | 1 | $53.95 | |
| 21 | 1704-489 | BUSHING,ADJUSTER-MACH | 1 | $6.06 | |
| 23 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 24 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 25 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 26 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 27 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 28 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 29 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 |
