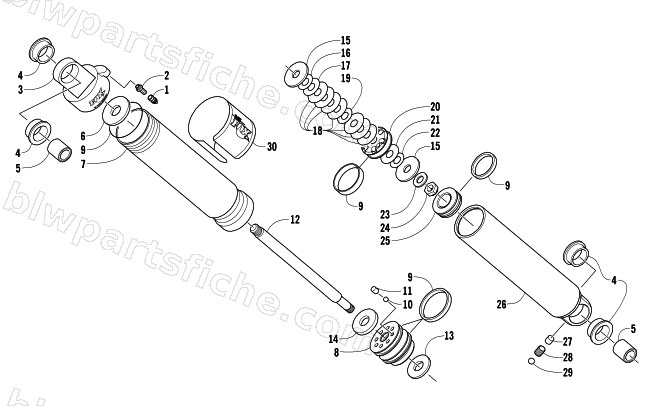

2008 Arctic Cat M1000 EFI 153 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2008 M1000 EFI 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-606 | SHOCK,FLOAT- 16"- REAR ARM-ASSY | 1 | $771.95 | |
| 0 | 2603-498 | REBUILD KIT,FLOAT W/RESERVOIR | 1 | $178.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 2603-613 | SPACER,AIR VOLUME REDUCER-.1875" | 1 | $16.95 | |
| 7 | 2603-722 | SLEEVE,AIR ASSY-7.915 TLG (FLOAT) | 1 | $233.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 3604-320 | SHAFT,SHOCK-.498 X 8.150" | 1 | $152.95 | |
| 13 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 14 | 3604-005 | SPACER,.504ID X 1.23OD X .200THK 6061AL | 1 | $29.95 | |
| 15 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 16 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 17 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 18 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 19 | 0603-880 | VALVE, SHOCK .900 X.012(040-12-090) | 1 | $12.95 | |
| 20 | 1603-314 | PISTON,0.039 ORIFICE | 1 | $120.95 | |
| 21 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 22 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 26 | 2603-335 | BODY,SHOCK-IMPACT ALUM-7.725"- (FLOAT) | 1 | $200.95 | |
| 27 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 28 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 29 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 30 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 |
