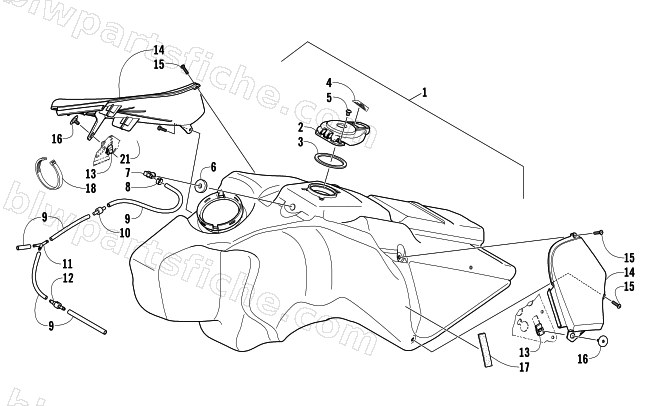

2008 Arctic Cat JAGUAR Z1 1100 EFI SNO PRO — GAS TANK ASSEMBLY
2008 JAGUAR Z1 1100 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-113 | R/B 1770-224 | 1 | $501.95 | |
| 2 | 1670-812 | CAP,GAS-ASSY | 1 | $74.95 | |
| 3 | 1670-816 | SEAL,GAS CAP | 1 | $6.75 | |
| 4 | 7611-810 | DECAL,GAS CAP | 1 | $2.47 | |
| 5 | 8479-365 | SCREW,MACH-HSBH M6X1.0X8 CL8.8 Z&B | 1 | $1.37 | |
| 6 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 7 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 8 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 9 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 9 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 11 | 0670-921 | FITTING,"Y"-1/4X1/4X1/4 | 1 | $10.95 | |
| 12 | 1670-913 | VALVE,PRESSURE RELIEF-VENTLINE | 1 | $26.95 | |
| 13 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 14 | 3706-408 | PAD,KNEE W/ BASE ASSY-RH | 1 | $106.95 | |
| 14 | 3706-409 | PAD,KNEE W/ BASE ASSY-LH | 1 | $106.95 | |
| 15 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 17 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 18 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
