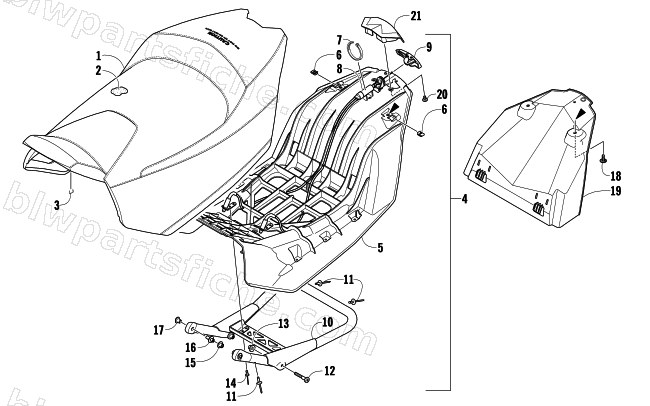

2008 Arctic Cat JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION — SEAT ASSEMBLY
2008 JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-991 | SEAT,BLK-MFG ASSY | 1 | $986.95 | |
| 1 | 4706-154 | COVER,SEAT-08 ADJ BLK | 1 | $438.95 | |
| 2 | 0617-467 | FOAM,SEAT (77-82 ILD) .48@5.4 | 1 | $160.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 3706-284 | BASE,SEAT-FABR | 1 | $485.95 | |
| 5 | 3606-662 | SEATBASE, PLASTIC | 1 | $103.95 | |
| 6 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 4606-337 | CABLE,SEAT ADJUSTER | 1 | $168.95 | |
| 9 | 4606-380 | LEVER,SEAT ADJUSTER CABLE | 1 | $13.73 | |
| 10 | 3706-641 | FRAME,SEAT-MACH | 1 | $185.95 | |
| 11 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 12 | 4606-338 | PIN,SLIDE-BOTTOM | 1 | $7.95 | |
| 13 | 1623-524 | WASHER,SLIDE-BOTTOM | 1 | $2.75 | |
| 14 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 15 | 1623-525 | WASHER,SLIDE-TOP | 1 | $2.75 | |
| 16 | 4606-339 | PIN,SLIDE-TOP | 1 | $17.87 | |
| 17 | 1623-542 | NUT,SLIDE-TOP-M8X1.25 | 1 | $22.01 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 4606-225 | PANEL,SEATBASE | 1 | $62.95 | |
| 20 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 | |
| 21 | 4606-345 | HOUSING,CABLE-SEAT ADJUSTER | 1 | $15.11 |
