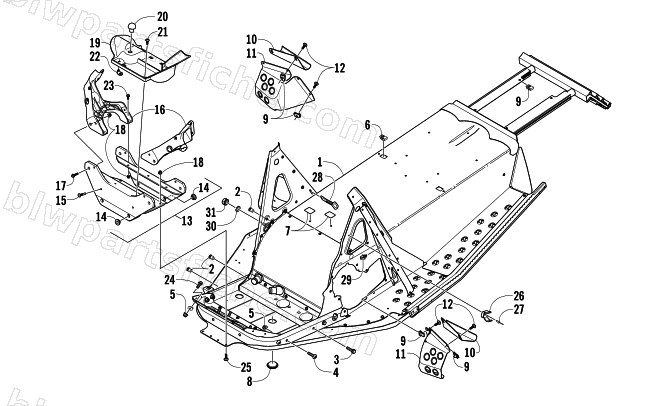

2008 Arctic Cat JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION — CHASSIS ASSEMBLY
2008 JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-182 | CHASSIS,4 STROKE-PTD BLK | 1 | $2,440.95 | |
| 2 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 3 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 4 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 5 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 6 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 7 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 8 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 3706-504 | BRKT,TOE HOOK-RH-PTD BLK | 1 | $20.63 | |
| 10 | 3706-505 | BRKT,TOE HOOK-LH-PTD BLK | 1 | $20.63 | |
| 11 | 3706-502 | SHIELD,TOE-RH-PTD BLK | 1 | $69.95 | |
| 11 | 3706-503 | SHIELD,TOE-LH-PTD BLK | 1 | $69.95 | |
| 12 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 13 | 1707-340 | BRKT,FRT SUSP MTG-W/BUSHINGS | 1 | $359.95 | |
| 14 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 15 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 16 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 16 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 17 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 4606-308 | CLOSE OFF,COVER-FRONT END | 1 | $19.25 | |
| 20 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 21 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 22 | 4606-770 | TAB,RESONATOR MTG | 1 | $9.59 | |
| 23 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 24 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 25 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 26 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 27 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 28 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 28 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 29 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 30 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 31 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 |
